Mitsubishi

CBN NP-WNGA432-GS3

MITMAT 836553
$120.26 / EA
Out of Stock

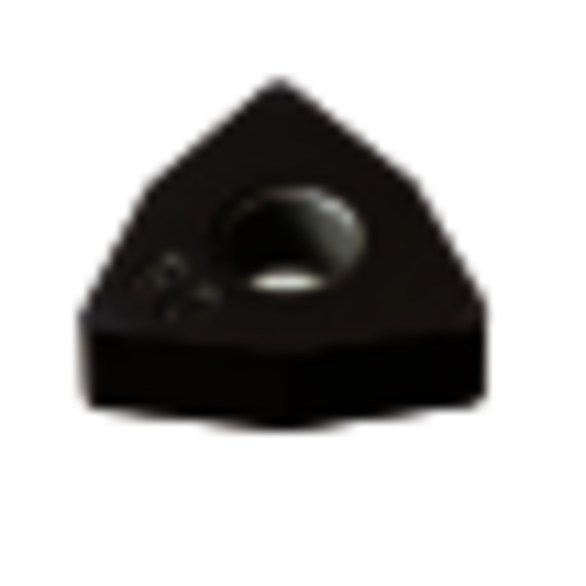

Image for MITMAT 836553
  • Insert Style: WNGA
  • Insert Size: 432
  • Material: CBN - Polycrystalline
  • Thickness: 0.1874 in
  • Corner Radius: 0.0315 in
  • Chipbreaker: Flat Top
  • Hole Diameter - Decimal: 0.2032 in
  • Hole Diameter - Metric: 5.16 mm
  • Included Angle: 80 Degree
  • Material Grade: BC8110
  • Shape: Trigon
  • The curved cutting edges support changes in cutting depth-smooth chip dischargre and disposal
  • Large rack angle highly suitable for finish light cutting difficult to cut material.

Standard/Approvals:NP-WNGA080408GS3, BC8110

Application:

  • Large rack angle highly suitable for finish light cutting difficult to cut material.

    • Mitsubishi 836553 WNGA | 432 | Flat Top | BC8110 | CBN - Polycrystalline | Turning Insert
