Pramet 6803678 Negative Turning Insert, Square, SNMX Insert, T9335
PREDOR 6803678
$44.52
/ EA
Out of Stock

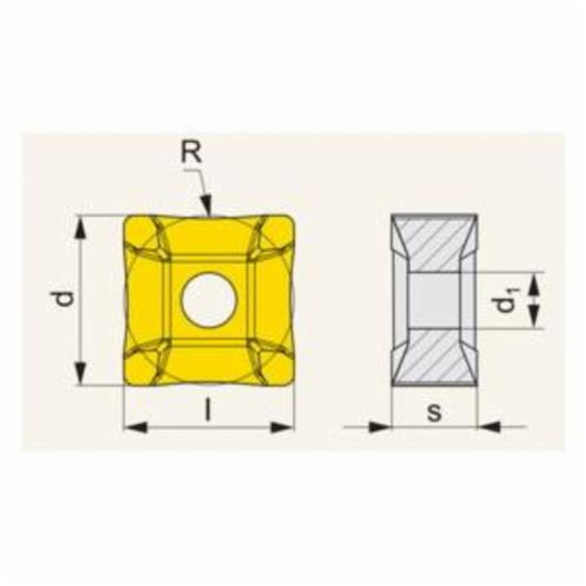

- Insert Style: SNMX
- Length: 19.05 mm
- Thickness: 8.15 mm
- Chipbreaker: R25
- Finish: CVD
- Hole Diameter - Decimal: 0.31299 in
- Hole Diameter - Metric: 7.95 mm
- Included Angle: 90 deg
- Inscribed Circle Size: 19.05 mm
- Material Grade: T9335, M, P, S
- Relief Angle: 0 deg
- Shape: Square
- Type: Negative
- Width: 19.05 mm
- T9335 - Functionally gradient substrate with medium grain size
- Relatively high cobalt content
- MT-CVD coating of medium thickness
- Material shows very high strength
- Special surface finish for coating
- Designed for machining material groups P, M and S
- Medium cutting speeds
- Continuous and heavily interrupted cut
- Also withstands very unfavorable machining conditions
- 25 mm curved cutting edges for external scarfing of tubes with a diameter of 29 to 36 mm
- 0.05 to 0.13 mm inscribed circle tolerance
- +/-0.13 mm THK tolerance
- Black color
Pramet Turning Insert| Negative| SNMX Insert| Square| 19.05 mm Inscribed Circle| 8.15 mm THK| 19.05 mm W| 19.05 mm L| R25 Chipbreaker| 7.95 mm Hole Dia| Manufacturer's Grade: T9335| SNMX 19-R25 ISO Code| 90 deg Included Angle| 0 deg Relief Angle| CVD Coated| Material Grade: M| P| S
