Seco 00072296 Turning Insert, ANSI Code: VCGR332 CP200, VCGR Insert, Material Grade: M, S, 160408 Insert, Diamond Shape, 16 Seat, Neutral Cutting, For Use On Stainless Steel, Super Alloys and Titanium, Carbide, Manufacturer's Grade: CP200
SECO 00072296
$56.65
/ Order multiples of 5 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: VCGR
- Insert Size: 160408
- Material: Carbide
- Length: 16.6 mm
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: CP200
- Cutting Direction: Neutral
- Finish: PVD

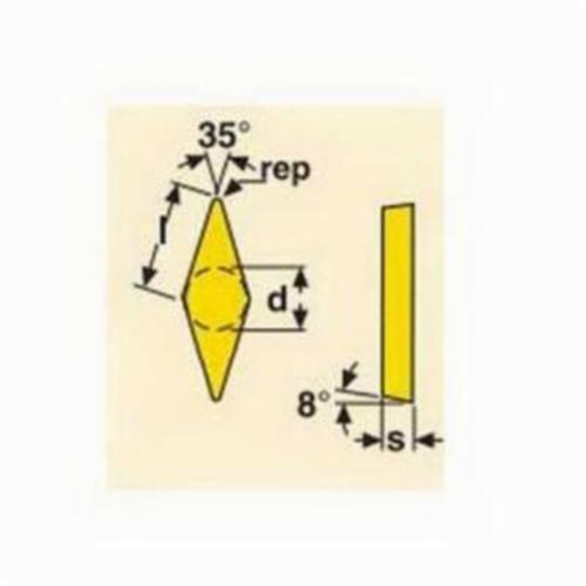

- Included Angle: 35 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 9.525 mm
- Material Grade: M, S
- Maximum Depth of Cut: 3.75 in
- Relief Angle: 7 deg
- Seat Size: 16
- Shape: Diamond
- Width: 16.6 mm
- Longer tool life - excellent wear and fracture resistance
- Prevents layer peeling - strong intra coating adhesion
- Higher adhesion between each layer with improved crystal structure
- Control chipping - higher layer strength and fracture resistance
- CA525 grade special substrate and tough coating film provides high wear and fracture resistance
- First choice for steel machining
- PS chipbreaker - general purpose chipbreaker
- More stable due to large contact surface
For finishing, medium-rough machining and rough machining
Seco Turning Insert | VCGR Insert | 160408 Insert | Diamond Shape | 3.75 mm Maximum Depth of Cut | 9.52 mm Inscribed Circle | 4.76 mm Thickness | 16 Seat | 0.8 mm Corner Radius | Manufacturer's Grade: CP200 | ANSI Code: VCGR332 CP200 | ISO Code: VCGR160408 CP200 | 35 deg Included Angle | 7 deg Relief Angle | Neutral Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M | S | For Use On: Stainless Steel | Super Alloys and Titanium
