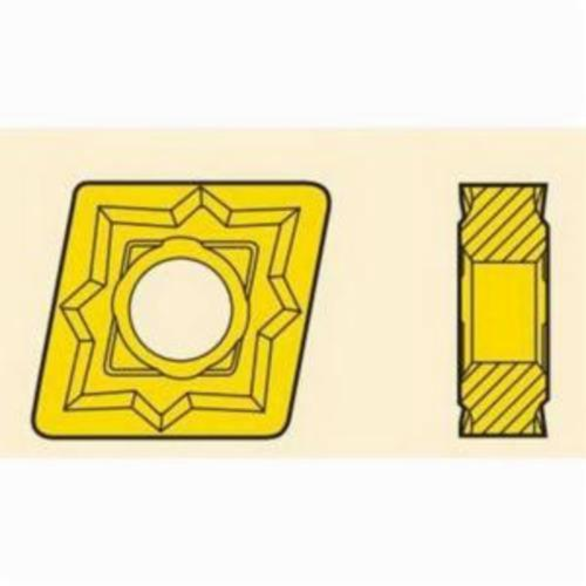

Seco 00096864 Turning Insert, ANSI Code: CNMP432-MF1 CP500, CNMG Insert, Material Grade: M, 120408 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500
SECO 00096864
$22.40
/ EA
In Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: CNMP
- Insert Size: 120408
- Material: Carbide
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: CP500
- Chipbreaker: MF1
- Clearance Angle: 0 deg
- Cutting Direction: Neutral
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 0.5 in
- Material Grade: M
- Maximum Depth of Cut: 5.25 in
- Rake: Negative
- Screw Diameter - Decimal: 0.203 in
- Screw Diameter - Metric: 5.156 mm
- Seat Size: 12
- Shape: Diamond
Medium and Finishing
Seco Turning Insert | CNMG Insert | 120408 Insert | Diamond Shape | 5.25 mm Maximum Depth of Cut | 12.7 mm Inscribed Circle | 4.76 mm Thickness | 12 Seat | Negative Rake | MF1 Chipbreaker | 0.8 mm Corner Radius | 5.15 mm Diameter Hole | Manufacturer's Grade: CP500 | ANSI Code: CNMP432-MF1 CP500 | ISO Code: CNMG120408-MF1 CP500 | 80 deg Included Angle | 0 deg Relief Angle | Neutral Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M | For Use On: Stainless Steel
