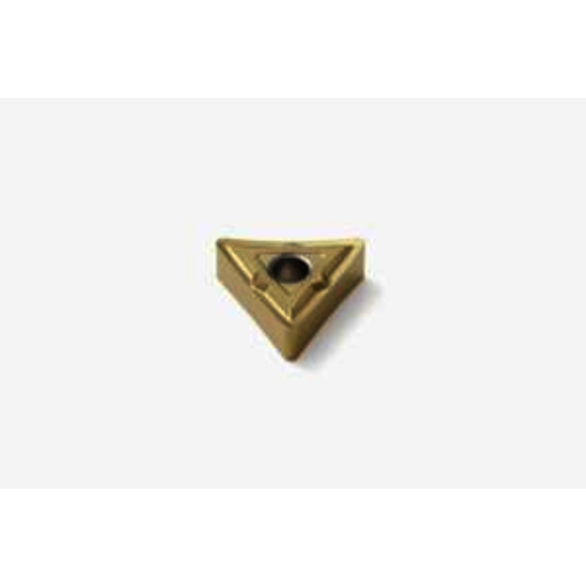

Seco 02213687 Turning Insert, ANSI Code: TNMP331-MF1 CP200, TNMG Insert, Material Grade: M, S, 160404 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Super Alloys and Titanium, Carbide
SECO 02213687
$19.59
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Size: 160404
- Material: Carbide
- Thickness: 4.76 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: CP200
- Chipbreaker: MF1
- Cutting Direction: Neutral
- Hole Diameter - Metric: 3.81 mm
- Included Angle: 60 deg
- Inscribed Circle - Metric: 9.52 mm
- Material Grade: M, S
- Maximum Depth of Cut: 3.75 in
- Rake: Negative
- Seat Size: 16
- Shape: Triangular
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
Medium and Finishing
Seco Turning Insert | TNMG Insert | 160404 Insert | Triangle Shape | 3.75 mm Maximum Depth of Cut | 9.52 mm Inscribed Circle | 4.76 mm Thickness | 16.5 mm Length | 16 Seat | Negative Rake | MF1 Chipbreaker | 0.4 mm Corner Radius | 3.81 mm Diameter Hole | Manufacturer's Grade: CP200 | ANSI Code: TNMP331-MF1 CP200 | ISO Code: TNMG160404-MF1 CP200 | 60 deg Included Angle | 0 deg Relief Angle | Neutral Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M | S | For Use On: Stainless Steel | Super Alloys and Titanium
