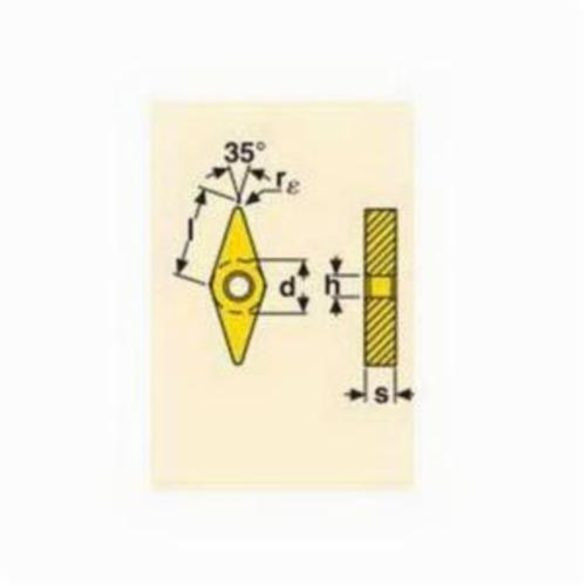

Seco 02615987 Turning Insert, ANSI Code: VNGP 331F-M1 TS2500, VNGG Insert, Material Grade: S, 160404 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2500
SECO 02615987
$65.29
/ EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: VNGG
- Insert Size: 160404
- Material: Carbide
- Length: 16 mm
- Thickness: 4.76 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: TS2500
- Chipbreaker: M1
- Cutting Direction: Neutral
- Finish: PVD
- Hole Diameter - Decimal: 0.15 in
- Hole Diameter - Metric: 3.81 mm
- Included Angle: 35 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 9.525 mm
- Material Grade: S
- Maximum Depth of Cut: 3.75 in
- Rake: Negative
- Relief Angle: 0 deg
- Seat Size: 16
- Shape: Diamond
- Type: Negative;Basic Shape
- Width: 16 mm
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
- Excellent surface finish
Medium Applications
Seco Turning Insert | VNGG Insert | 160404 Insert | Diamond Shape | 3.75 mm Maximum Depth of Cut | 9.52 mm Inscribed Circle | 4.76 mm Thickness | 16 Seat | Negative Rake | M1 Chipbreaker | 0.4 mm Corner Radius | 3.81 mm Diameter Hole | Manufacturer's Grade: TS2500 | ANSI Code: VNGP 331F-M1 TS2500 | ISO Code: VNGG160404-M1 TS2500 | 35 deg Included Angle | 0 deg Relief Angle | Neutral Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: S | For Use On: Super Alloys and Titanium
