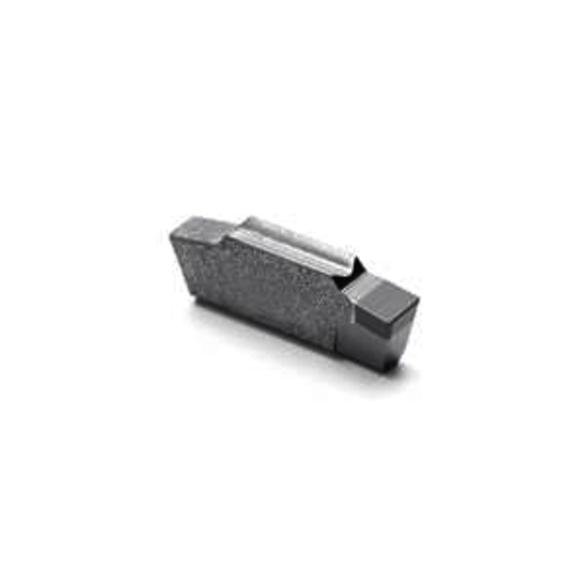

Seco Secomax™ 02728735 MDT Single End Turning Insert, ANSI Code: LCGN160404-0400E25- CBN170, LCGN Insert, Material Grade: S, 1604 Insert, Rectangle Shape, 16 Seat, Neutral Cutting, For Use On Super Alloys and Titanium, PCBN, Manufacturer's Grade: CBN170
- Finish/Coating: Uncoated
- Insert Style: LCGN
- Insert Size: 1604
- Material: PCBN
- Length: 15.9 mm
- Thickness: 4.5 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: CBN170
- Chipbreaker: LF
- Cutting Direction: Neutral
- Finish: Uncoated
- Included Angle: 90 deg
- Material Grade: S
- Relief Angle: 7 deg
- Seat Size: 16
- Shape: Rectangle
- Type: Multi Directional;Single End
Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
Seco Secomax Turning Insert | Single End | Series: MDT | LCGN Insert | 1604 Insert | Rectangle Shape | 4.5 mm Thickness | 15.9 mm Length | 16 Seat | LF Chipbreaker | 0.4 mm Corner Radius | Manufacturer's Grade: CBN170 | ANSI Code: LCGN160404-0400E25- CBN170 | ISO Code: LCGN160404-0400E25-LF CBN170 | Neutral Cutting Direction | PCBN | Uncoated | Material Grade: S | For Use On: Super Alloys and Titanium
