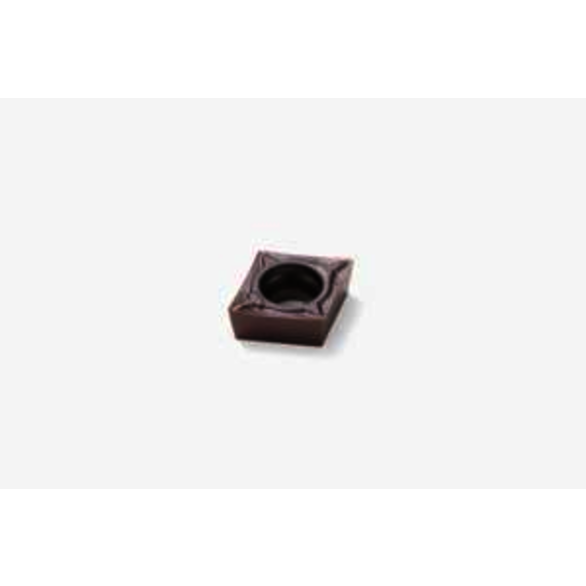

Seco 02731806 Turning Insert, ANSI Code: CCMT32.51-F1 TH1000, CCMT Insert, Material Grade: H, S, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hard Materials and Titanium/Super Alloys, Carbide, Manufacturer's Grade: TH1000
SECO 02731806
$15.75
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlSiN Nanolaminate Coated
- Insert Style: CCMT
- Insert Size: 09T304
- Material: Carbide
- Inscribed Circle: 9.500 mm
- Thickness: 3.97 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: TH1000
- Chipbreaker: F1
- Clearance Angle: 7 deg
- Coating: TiAlSiN
- Coating Process: PVD
- Cutting Direction: Neutral
- Hole Diameter - Metric: 4.5 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 9.5 mm
- Inscribed Circle Size: 0.375 in
- Insert Hand: Neutral
- ISO Number: CCMT32.51-F1 TH1000
- Manufacturer Grade: TH1000
- Material Grade: H, S
- Maximum Depth of Cut: 3.5 in
- Part Number: 02731806
- Primary Workpiece Material: Steel
- Rake: Positive
- Relief Angle: 7 deg
- Screw Diameter - Decimal: 0.177 in
- Screw Diameter - Metric: 4.495 mm
- Seat Size: 09
- Shape: Diamond
Standard/Approvals:CCMT32.51-F1 TH1000
Seco Tools 02731806 CCMT | 32.51 | F1 | TH1000 | Carbide | Turning Insert
