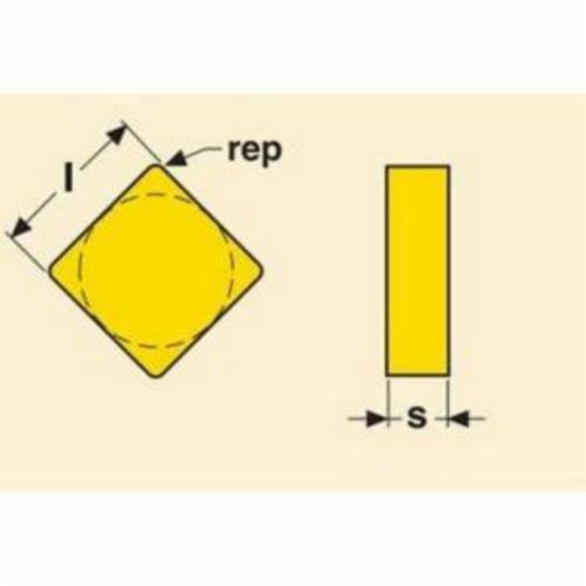

Seco Secomax™ 02866884 Turning Insert, ANSI Code: SNGN322S-00420 CBN010, SNGN Insert, Material Grade: H, 090308 Insert, Squared Shape, 09 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN010
SECO 02866884
$305.64
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Style: SNGN
- Insert Size: 90308
- Material: PCBN
- Length: 9.52 mm
- Thickness: 3.18 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: CBN010
- Hole Diameter - Metric: 3.81 mm
- Included Angle: 90 deg
- Inscribed Circle - Metric: 9.53 mm
- Inscribed Circle Size: 9.52 mm
- Material Grade: H
- Maximum Depth of Cut: 3.75 in
- Relief Angle: 0 deg
- Seat Size: 09
- Shape: Squared
- Width: 9.52 mm
- Width - Metric: 9.53 mm
- Finish: Uncoated
Seco Secomax Turning Insert | SNGN Insert | 090308 Insert | Square Shape | 3.75 mm Maximum Depth of Cut | 9.53 mm Inscribed Circle | 3.18 mm Thickness | 9.53 mm Width | 9.53 mm Length | 09 Seat | 0.8 mm Corner Radius | 3.81 mm Diameter Hole | Manufacturer's Grade: CBN010 | ANSI Code: SNGN322S-00420 CBN010 | ISO Code: SNGN090308S-01020 CBN010 | 90 deg Included Angle | 0 deg Relief Angle | PCBN | Uncoated | Material Grade: H | For Use On: Hard Materials
