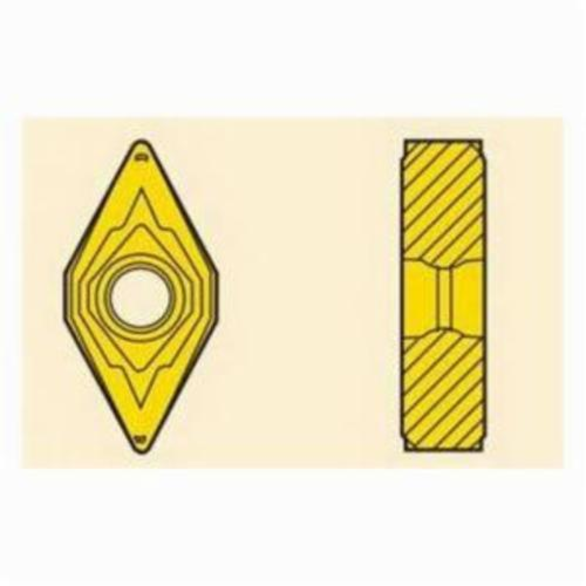

Seco 02959828 Turning Insert, ANSI Code: DNMU331-MF2 TP2501, DNMU Insert, Material Grade: P, 110404 Insert, Diamond Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
SECO 02959828
$23.80
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Size: 110404
- Material: Carbide
- Thickness: 4.76 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: TP2501
- Chipbreaker: MF2
- Cutting Direction: Neutral
- Hole Diameter - Metric: 3.81 mm
- Included Angle: 55 deg
- Inscribed Circle - Metric: 9.53 mm
- Material Grade: P
- Maximum Depth of Cut: 3.75 in
- Rake: Negative/Positive
- Seat Size: 11
- Shape: Diamond
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Medium and Finishing
Seco Turning Insert | DNMU Insert | 110404 Insert | Diamond Shape | 3.75 mm Maximum Depth of Cut | 9.53 mm Inscribed Circle | 4.76 mm Thickness | 11 Seat | Negative/Positive Rake | MF2 Chipbreaker | 0.4 mm Corner Radius | 3.81 mm Diameter Hole | Manufacturer's Grade: TP2501 | ANSI Code: DNMU331-MF2 TP2501 | ISO Code: DNMU110404-MF2 TP2501 | 55 deg Included Angle | 0 deg Relief Angle | Neutral Cutting Direction | Carbide | CVD-TiCN+Al2O3 Coated | Material Grade: P | For Use On: Steel
