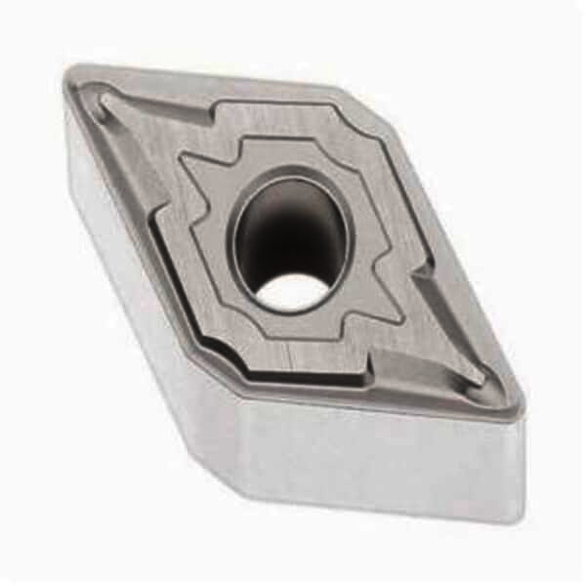

Seco 02959939 Turning Insert, ANSI Code: DNMG432-M3 TP1501, DNMG Insert, Material Grade: P, 150408 Insert, Diamond Shape, 15 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1501
SECO 02959939
$28.73
/ EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: DNMG
- Insert Size: 150408
- Material: Carbide
- Length: 15.500 mm
- Inscribed Circle: 0.5000 in
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: TP1501
- Chipbreaker: M3
- Coating: Al2O3
- Coating Process: Duratomic
- Cutting Direction: Neutral
- Hole Diameter - Decimal: 0.2028 in
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 55 deg
- Inscribed Circle - Metric: 12.7 mm
- Insert Hand: Neutral
- ISO Number: DNMG432-M3 TP1501
- Manufacturer Grade: TP1501
- Material Grade: P
- Maximum Depth of Cut: 5.25 in
- Part Number: 15417
- Primary Workpiece Material: Steel
- Rake: Negative/Positive
- Relief Angle: 0 Degree
- Seat Size: 15
- Secondary Workpiece Material: Cast Iron
- Shape: Diamond
Standard/Approvals:DNMG432-M3 TP1501
Seco Tools 15417 DNMG | 432 | M3 | TP1501 | Carbide | Turning Insert
