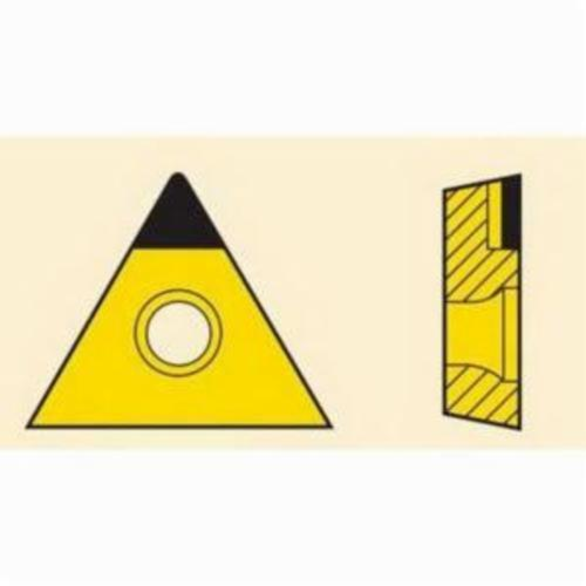

Seco 02960411 High Feed Wiper Turning Insert, ANSI Code: TCMX32.52W-F1 TP2501, TCMX Insert, Material Grade: P, 16T308 Insert, Triangular Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
SECO 02960411
$25.21
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: TCMX
- Insert Size: 16T308
- Material: Carbide
- Length: 16.5 mm
- Thickness: 3.97 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: TP2501
- Chipbreaker: W-F1
- Cutting Direction: Neutral
- Finish: CVD
- Hole Diameter - Decimal: 0.17716 in
- Hole Diameter - Metric: 4.5 mm
- Included Angle: 60 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 9.53 mm
- Material Grade: P
- Maximum Depth of Cut: 3.75 in
- Rake: Positive
- Relief Angle: 7 deg
- Seat Size: 16
- Shape: Triangular
- Type: High Feed Wiper
- Width: 16.5 mm
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Finishing Applications
Seco Turning Insert | High Feed Wiper | TCMX Insert | 16T308 Insert | Triangle Shape | 3.75 mm Maximum Depth of Cut | 9.52 mm Inscribed Circle | 3.97 mm Thickness | 16.5 mm Length | 16 Seat | Positive Rake | W-F1 Chipbreaker | 0.8 mm Corner Radius | 4.5 mm Diameter Hole | Manufacturer's Grade: TP2501 | ANSI Code: TCMX32.52W-F1 TP2501 | ISO Code: TCMX16T308W-F1 TP2501 | 60 deg Included Angle | 7 deg Relief Angle | Neutral Cutting Direction | Carbide | CVD-TiCN+Al2O3 Coated | Material Grade: P | For Use On: Steel
