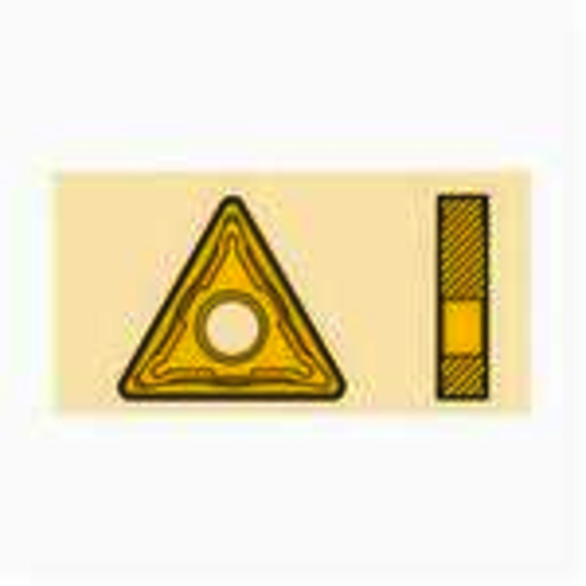

Seco 02960450 Turning Insert, ANSI Code: TNMG434-M5 TP2501, TNMG Insert, Material Grade: P, 220416 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
SECO 02960450
$27.72
/ EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: TNMG
- Insert Size: 220416
- Material: Carbide
- Inscribed Circle: 12.700 mm
- Thickness: 4.76 in
- Corner Radius: 1.600 mm
- Manufacturer's Grade: TP2501
- Chipbreaker: M5
- Coating: TiCN/Al2O3
- Coating Process: CVD
- Corner Radius - Metric: 1.6 mm
- Cutting Direction: Neutral
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 60 deg
- Inscribed Circle - Metric: 12.7 mm
- Insert Hand: Neutral
- Insert Length: 18.100 mm
- ISO Number: TNMG220416-M5 TP2501
- Manufacturer Grade: TP2501
- Material Grade: P
- Maximum Depth of Cut: 5.25 in
- Overall Length: 22.000 mm
- Part Number: 15974
- Primary Workpiece Material: Steel; Stainless Steel; Cast Iron
- Rake: Negative/Positive
- Relief Angle: 0 Degree
- Seat Size: 22
- Shape: Triangular
Standard/Approvals:TNMG220416-M5 TP2501
Seco Tools 15974 TNMG | 434 | M5 | TP2501 | Carbide | Turning Insert
