Seco 02960827 Turning Insert, ANSI Code: DCMX32.51W-F1 TP2501, DCMX Insert, Material Grade: P, 11T304 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: DCMX
- Insert Size: 11T304
- Material: Carbide
- Length: 11.6 mm
- Thickness: 3.97 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: TP2501
- Chipbreaker: W-F1
- Cutting Direction: Neutral
- Finish: CVD
- Hole Diameter - Decimal: 0.17716 in
- Hole Diameter - Metric: 4.5 mm

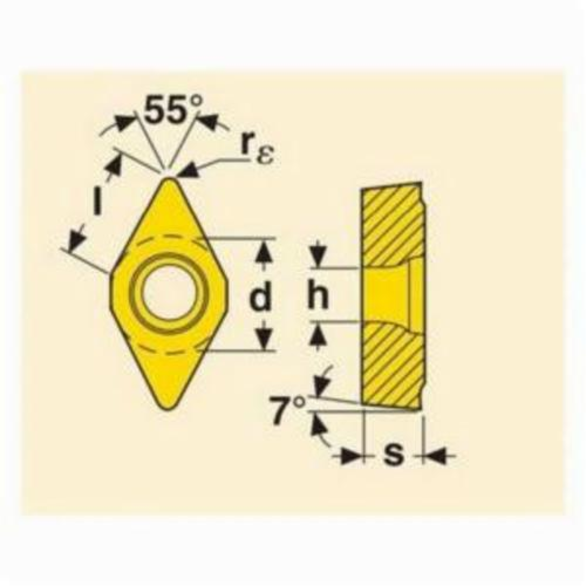

- Included Angle: 55 deg
- Inscribed Circle - Metric: 9.53 mm
- Inscribed Circle Size: 9.53 mm
- Material Grade: P
- Maximum Depth of Cut: 3.75 in
- Rake: Positive
- Relief Angle: 7 deg
- Seat Size: 11
- Shape: Diamond
- Type: High Feed Wiper
- Width: 11.6 mm
T-Max® is designed for productive external and internal turning of difficult-to-machine materials. It resists wear, for secure and stable machining, and offers longer tool life. Performs multiple operations, from roughing to finishing, offering higher metal removal rates for increased production.
- Reliable and secure machining
Finishing Applications
Seco Turning Insert | DCMX Insert | 11T304 Insert | Diamond Shape | 3.75 mm Maximum Depth of Cut | 9.53 mm Inscribed Circle | 3.97 mm Thickness | 11 Seat | Positive Rake | W-F1 Chipbreaker | 0.4 mm Corner Radius | 4.5 mm Diameter Hole | Manufacturer's Grade: TP2501 | ANSI Code: DCMX32.51W-F1 TP2501 | ISO Code: DCMX11T304W-F1 TP2501 | 55 deg Included Angle | 7 deg Relief Angle | Neutral Cutting Direction | Carbide | CVD-TiCN+Al2O3 Coated | Material Grade: P | For Use On: Steel
