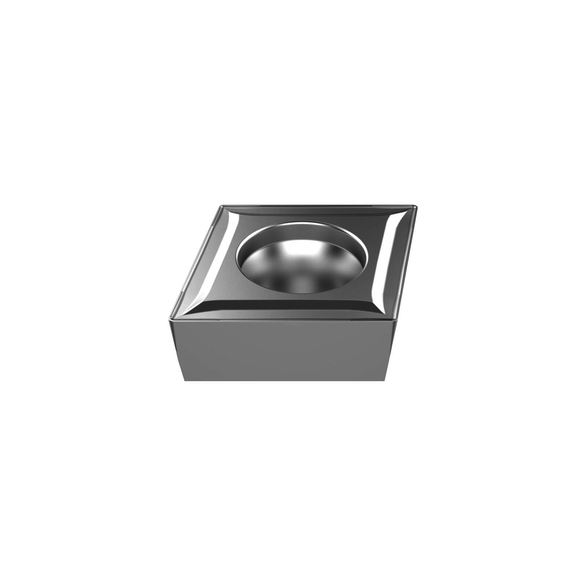

Seco 02960840 Turning Insert, ANSI Code: CCMT431-M3 TP1501, CCMT Insert, Material Grade: P, 120404 Insert, Diamond Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1501
SECO 02960840
$25.21
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: CCMT
- Insert Size: 120404
- Material: Carbide
- Length: 12.9 mm
- Thickness: 4.76 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: TP1501
- Chipbreaker: M3
- Cutting Direction: Neutral
- Finish: CVD
- Hole Diameter - Decimal: 0.22047 in
- Hole Diameter - Metric: 5.6 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 12.7 mm
- Material Grade: P
- Maximum Depth of Cut: 5.25 in
- Rake: Negative/Positive
- Relief Angle: 7 deg
- Seat Size: 12
- Shape: Diamond
- Type: Basic Shape;Positive
INSERT CCMT431-M3 TP1501
