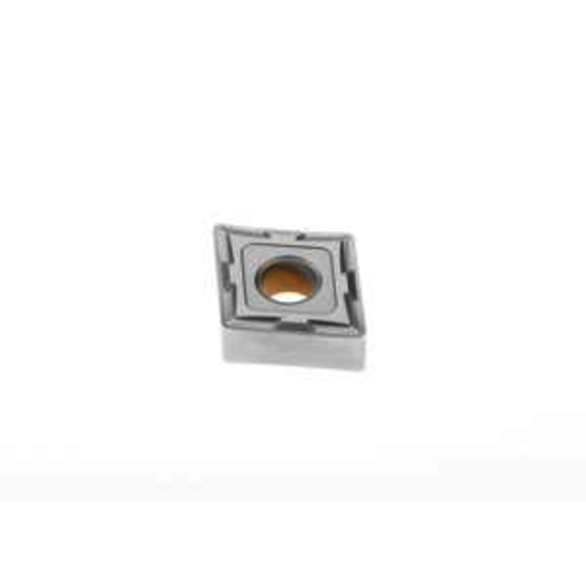

Seco 03094140 CNMG Insert Turning, CNMG Insert, Diamond Shape, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: TP3501
SECO 03094140
$22.80
/ EA
Out of Stock
- Finish/Coating: Ti(C/N)/Al2O3
- Insert Style: CNMG
- Insert Size: 432
- Material: Carbide
- Inscribed Circle: 12.700 mm
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: TP3501
- Chipbreaker: MR7
- Coating: TiCN/Al2O3
- Coating Process: CVD
- Cutting Direction: Neutral
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 12.7 mm
- Insert Hand: Neutral
- ISO Number: CNMG432-MR7 TP3501
- Manufacturer Grade: TP3501
- Overall Length: 12.900 mm
- Part Number: 49029
- Primary Workpiece Material: Steel; Stainless Steel
- Rake: Negative
- Relief Angle: 0 Degree
- Shape: Diamond
- High reliability for unstable conditions
- Handles lower speeds and heavy interruptions
- Chrome Used-Edge Detection minimizes waste
Standard/Approvals:CNMG432-MR7 TP3501
Seco Tools 49029 CNMG | 432 | MR7 | TP3501 | Carbide | Turning Insert
