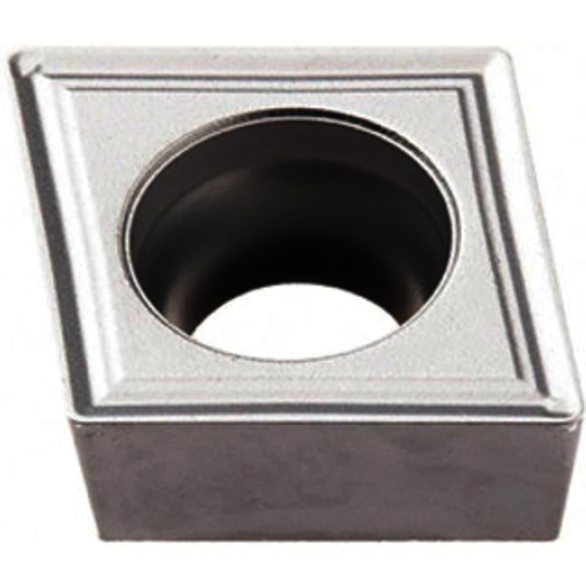

Seco 03095431 CCMT Insert Turning, CCMT Insert, Diamond Shape, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: TP3501
SECO 03095431
$15.57
/ EA
Out of Stock
- Finish/Coating: TiCN/Al2O3
- Insert Style: CCMT
- Insert Size: 21.51
- Material: Carbide
- Inscribed Circle: 6.350 mm
- Thickness: 2.38 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: TP3501
- Chipbreaker: M3
- Coating: TiCN/Al2O3
- Coating Process: CVD
- Cutting Direction: Neutral
- Hole Diameter - Metric: 2.9 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 6.35 mm
- Insert Hand: Neutral
- Insert Length: 6.500 mm
- ISO Number: CCMT21.51-M3 TP3501
- Manufacturer Grade: TP3501
- Part Number: 49295
- Primary Workpiece Material: Steel; Stainless Steel
- Rake: Positive
- Relief Angle: 7 deg
- Shape: Diamond
- High reliability for unstable conditions
- Handles lower speeds and heavy interruptions
- Chrome Used-Edge Detection minimizes waste
Standard/Approvals:CCMT21.51-M3 TP3501
Seco Tools 49295 CCMT | 21.51 | M3 | TP3501 | Carbide | Turning Insert
