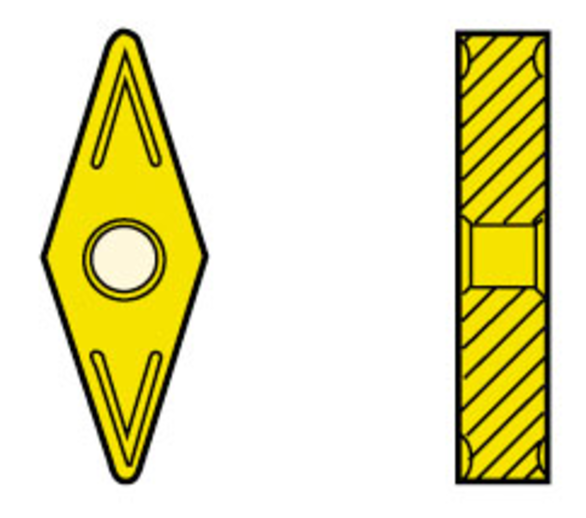

Seco 74009615 Turning Insert, ANSI Code: VNMG332-MR4 883, VNMG Insert, Material Grade: S, 160408 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: 883
SECO 74009615
$31.04
/ Order multiples of 5 EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Style: VNMG
- Insert Size: 160408
- Material: Carbide
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: 883
- Chipbreaker: MR4
- Clearance Angle: 0 deg
- Cutting Direction: Neutral
- Hole Diameter - Metric: 3.81 mm
- Included Angle: 35 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 0.375 in
- Material Grade: S
- Maximum Depth of Cut: 3.75 in
- Rake: Negative
- Screw Diameter - Decimal: 0.15 in
- Screw Diameter - Metric: 3.81 mm
- Seat Size: 16
- Shape: Diamond
INSERT VNMG332-MR4 883
