SUMITOMO

Sumitomo 19PV335 CNMG432EGU-AC610M Carbide Turning Insert

SUMI 19PV335
$12.48 / EA
Out of Stock

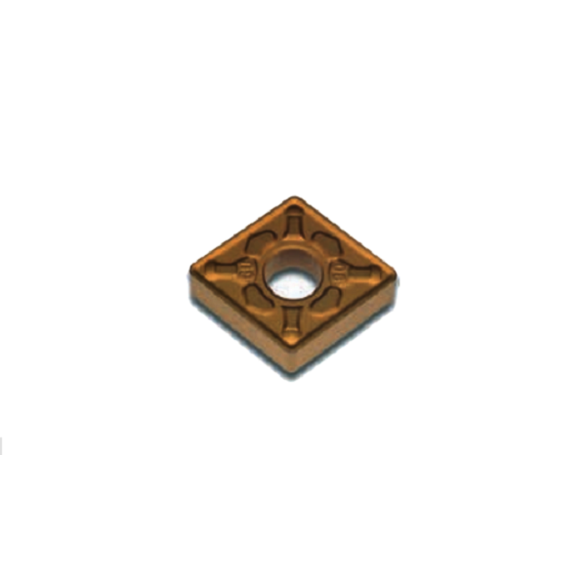

Image for SUMI 19PV335
  • Insert Style: CNMG
  • Insert Size: 432
  • Material: Carbide
  • Thickness: 3/16 in
  • Corner Radius: 1/32 in
  • Chipbreaker: EGU
  • Hole Diameter - Decimal: 0.2031 in
  • Included Angle: 80 Degree
  • Inscribed Circle Size: 0.5 in
  • Material Grade: AC610M
  • Relief Angle: 7 Degree
  • Shape: Diamond

Standard/Approvals:CNMG120408N-GU, CNMG432EGU, ANSI, ISO 13399, AC610M

Sumitomo Electric Carbide 19PV335 CNMG | 432 | EGU | AC610M | Carbide | Turning Insert
