SUMITOMO

Sumitomo Electric Carbide 19T3BES CNMG, 432, ESX, Turning Insert

SUMI 19T3BES
$14.03 / Order multiples of 10 EA
Out of Stock

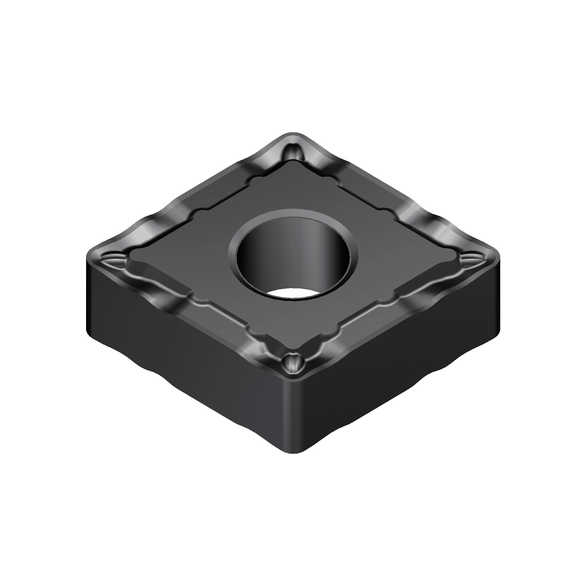

Image for SUMI 19T3BES
  • Insert Style: CNMG
  • Insert Size: 432
  • Material: Carbide
  • Thickness: 3/16 in
  • Corner Radius: 1/32 in
  • Chipbreaker: ESX
  • Hole Diameter - Decimal: 0.2031 in
  • Hole Diameter - Metric: 5.16 mm
  • Included Angle: 80 Degree
  • Material Grade: P30/P40
  • Relief Angle: 0 Degree
  • Shape: Diamond

Standard/Approvals:CNMG120408N-SX, CNMG432ESX, ANSI, ISO 13399, AC8035P

Sumitomo Electric Carbide 19T3BES CNMG | 432 | ESX | AC8035P | Carbide | Turning Insert
