SUMITOMO

Sumitomo Electric Carbide 19T3CGA CNMG, 433, EEG, Turning Insert

SUMI 19T3CGA
$14.03 / Order multiples of 10 EA
Out of Stock

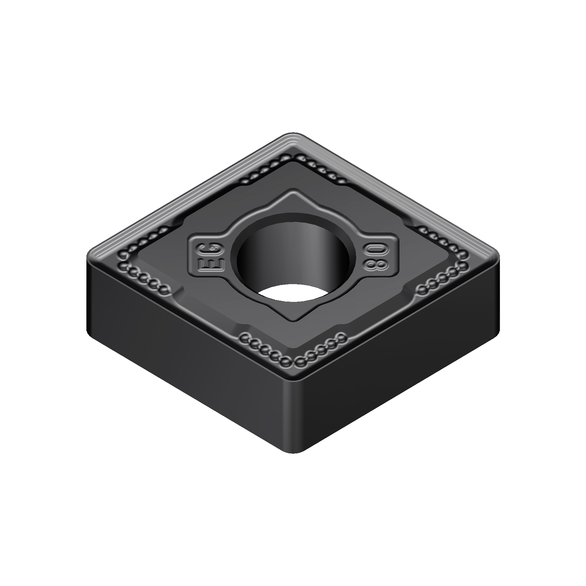

Image for SUMI 19T3CGA
  • Insert Style: CNMG
  • Insert Size: 433
  • Material: Carbide
  • Thickness: 3/16 in
  • Corner Radius: 3/64 in
  • Chipbreaker: EEG
  • Hole Diameter - Decimal: 0.2031 in
  • Hole Diameter - Metric: 5.16 mm
  • Included Angle: 80 Degree
  • Material Grade: P30/P40
  • Relief Angle: 0 Degree
  • Shape: Diamond

Standard/Approvals:CNMG120412N-EG, CNMG433EEG, ANSI, ISO 13399, AC8035P

Sumitomo Electric Carbide 19T3CGA CNMG | 433 | EEG | AC8035P | Carbide | Turning Insert
