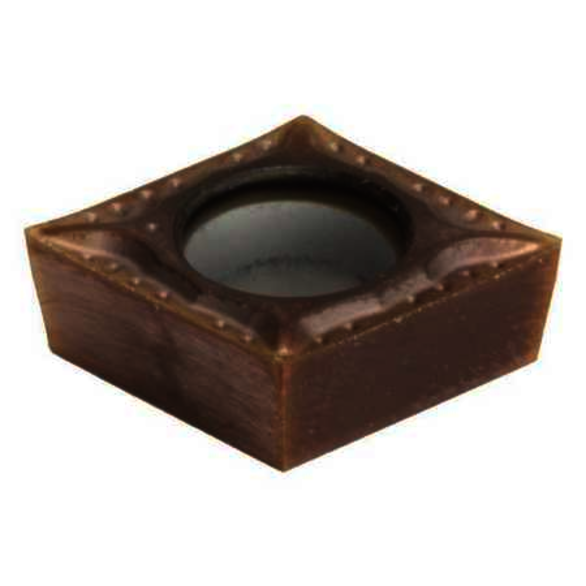

Sumitomo 1NHM005 CCGT32.50MESI-AC530U Turning Insert
SUMI 1NHM005
$13.68
/ Order multiples of 10 EA
Out of Stock
- Insert Style: CCGT
- Insert Size: 32.50
- Material: Carbide
- Thickness: 5/32 in
- Corner Radius: 0.0039 in
- Chipbreaker: MESI
- Hole Diameter - Decimal: 0.1372 in
- Included Angle: 80 Degree
- Inscribed Circle Size: 0.375 in
- Material Grade: AC530U
- Relief Angle: 7 Degree
- Shape: Diamond
- For interrupted and general steel cutting utilizing the new super multi-layered PVD coating of nanometer thick TiAlN and AlCrN layers, coupled with a fine-grained super tough substrate for excellent fracture resistance.
Standard/Approvals:CCGT09T301MN-SI, CCGT32.50MESI, ANSI, ISO 13399, AC530U
Application:
Sumitomo Electric Carbide 1NHM005 CCGT | 32.50 | MESI | AC530U | Carbide | Turning Insert
