SUMITOMO

Sumitomo 1NPV007 CCGT32.51MESI-AC610M Turning Insert

SUMI 1NPV007
$12.78 / Order multiples of 10 EA
Out of Stock

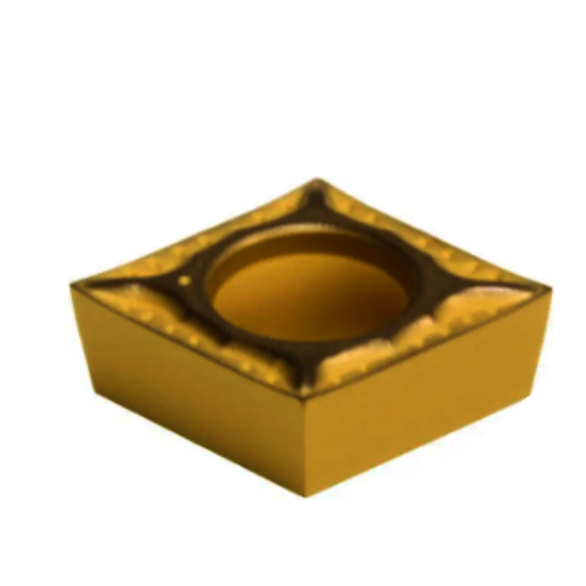

Image for SUMI 1NPV007
  • Insert Style: CCGT
  • Insert Size: 32.51
  • Material: Carbide
  • Thickness: 5/32 in
  • Corner Radius: 1/64 in
  • Chipbreaker: MESI
  • Hole Diameter - Decimal: 0.1372 in
  • Included Angle: 80 Degree
  • Inscribed Circle Size: 0.375 in
  • Material Grade: AC610M
  • Relief Angle: 7 Degree
  • Shape: Diamond
  • A high efficiency M10 grade featuring improved wear resistance during stainess steel cutting. Employs special ultra hard substrate & thin super FF coat

Standard/Approvals:CCGT09T304MN-SI, CCGT32.51MESI, ANSI, ISO 13399, AC610M

Application:

  • Finishing-light cut

    • Sumitomo Electric Carbide 1NPV007 CCGT | 32.51 | MESI | AC610M | Carbide | Turning Insert
