Tungaloy

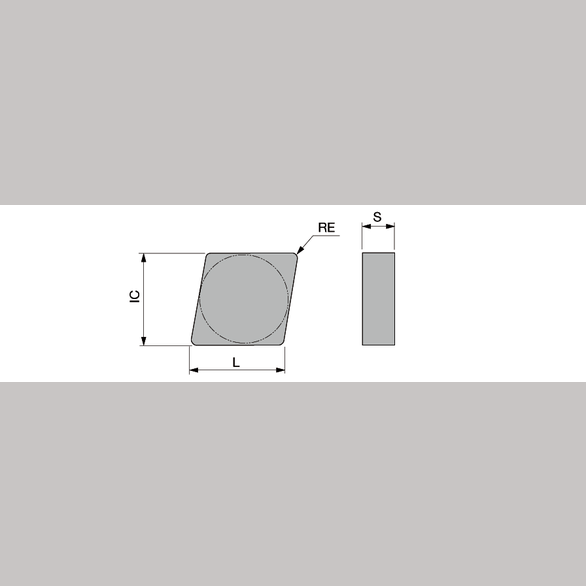

Negative relief ang., M/G class, 80deg rhombic ceramic insert, without chipbreaker
TUNGAL 6801897
$31.43
/ Order multiples of 10 EA
Out of Stock
- Insert Style: CNGN
- Insert Size: 452
- Material: Carbide
- Corner Radius: 0.0315 in
- Chipbreaker: FT-LX11
- Cutting Direction: Neutral
- Cutting Edge Length: 0.508 in
- Included Angle: 80 deg
- Inscribed Circle Size - Fractional: 1/2 in
- Insert Thickness: 0.313 in
- Manufacturer Grade: LX11
- Material Grade: LX11
- Maximum Depth of Cut: 0.0787 in
- Nose Radius: 0.032 in
- Screw Diameter - Decimal: 0.203 in
- Screw Diameter - Metric: 5.156 mm
INSERT CNGN 452 LX11 CERAMIC INSERTS
