Tungaloy

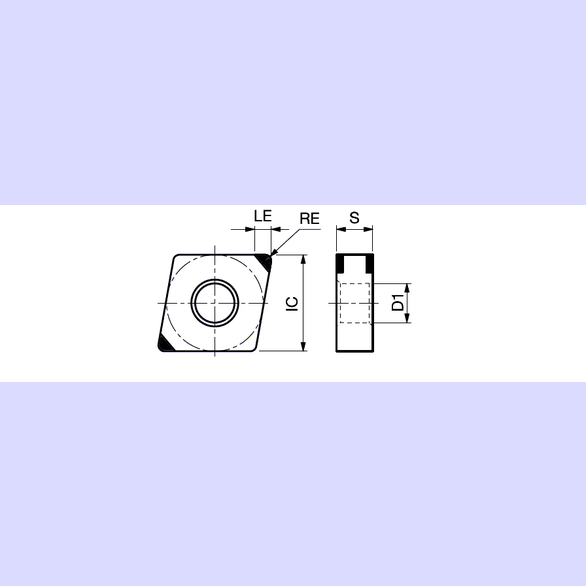

Negative relief ang., M/G class, 80deg rhombic CBN insert
TUNGAL 6818111
$168.83
/ EA
Out of Stock
- Insert Style: CNGA
- Insert Size: 431
- Material: Carbide
- Corner Radius: 0.0157 in
- Chipbreaker: FT-CBN
- Cutting Direction: Neutral
- Cutting Edge Length: 0.508 in
- Included Angle: 80 deg
- Inscribed Circle Size - Fractional: 1/2 in
- Insert Thickness: 0.187 in
- Manufacturer Grade: BXC50
- Material Grade: BXC50
- Maximum Depth of Cut: 0.0197 in
- Nose Radius: 0.016 in
- Screw Diameter - Decimal: 0.203 in
- Screw Diameter - Metric: 5.156 mm
INSERT 4QP-CNGA431 BXC50
