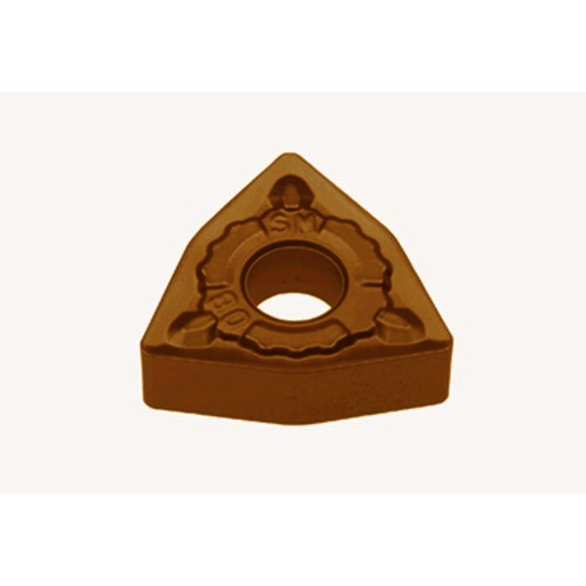

Tungaloy 6827372 WNMG, 080412, SM, Turning Insert
TUNGAL 6827372
$14.18
/ Order multiples of 10 EA
Out of Stock
- Insert Style: WNMG
- Insert Size: 080412
- Material: Carbide
- Inscribed Circle: 12.70 mm
- Corner Radius: 0.0472 in
- Chipbreaker: SM
- Coating: TiCN; TiN
- Coating Process: CVD
- Cutting Direction: Neutral
- Cutting Edge Length: 0.343 in
- Hole Diameter: 5.16 mm
- Hole Diameter - Metric: 5.16 mm
- Included Angle: 80 deg
- Inscribed Circle Size - Fractional: 1/2 in
- Insert Hand: Neutral
- Insert Thickness: 0.187 in
- ISO Number: WNMG080412-SM
- Manufacturer Grade: T6130
- Maximum Depth of Cut: 0.1575 in
- Overall Length: 8.70 mm
- Part Number: 6827372
- Rake: Negative
Negative relief angle, M class, trigon insert, for medium cutting of stainless steel
Standard/Approvals:T6130, WNMG080412-SM
Application:
Tungaloy 6827372 WNMG | 080412 | SM | T6130 | Carbide | Turning Insert
