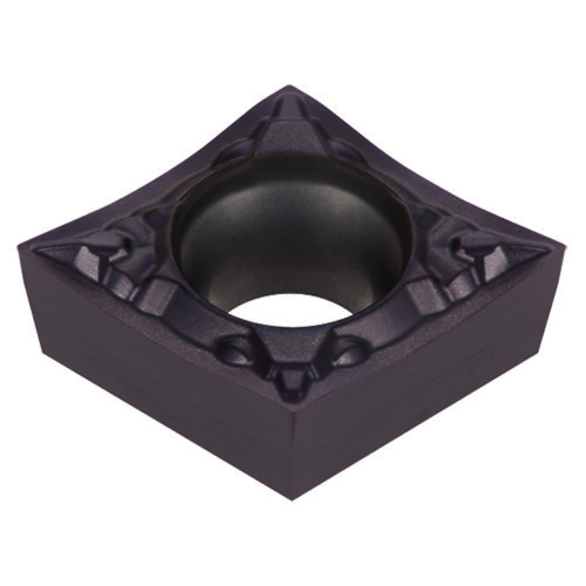

Tungaloy 6854007 CCGT, 09T302, JS, Turning Insert
TUNGAL 6854007
$23.85
/ Order multiples of 10 EA
Out of Stock
- Insert Style: CCGT
- Insert Size: 09T302
- Material: Carbide
- Inscribed Circle: 0.3750 in
- Corner Radius: 0.0079 in
- Chipbreaker: JS
- Clearance Angle: 7 deg
- Cutting Direction: Neutral
- Cutting Edge Length: 0.382 in
- Hole Diameter: 0.1730 in
- Hole Diameter - Decimal: 0.1730 in
- Hole Diameter - Metric: 4.40 mm
- Included Angle: 80 deg
- Inscribed Circle Size - Fractional: 3/8 in
- Insert Thickness: 0.156 in
- ISO Number: CCGT 32.50.5 FN-JS
- Manufacturer Grade: SH730
- Maximum Depth of Cut: 0.1181 in
- Overall Length: 0.3820 in
- Part Number: 6854007
- Rake: Positive
- Relief Angle: 7 Degree
Positive 7deg relief angle, G class, 80deg rhombic insert, for turning on small lathes
Standard/Approvals:SH730, CCGT 32.50.5 FN-JS
Application:
Tungaloy 6854007 CCGT | 09T302 | JS | SH730 | Carbide | Turning Insert
