Tungaloy

Tungaloy 6854298 CNMG, 120408, TSF, Turning Insert

TUNGAL 6854298
$16.73 / Order multiples of 10 EA
Out of Stock

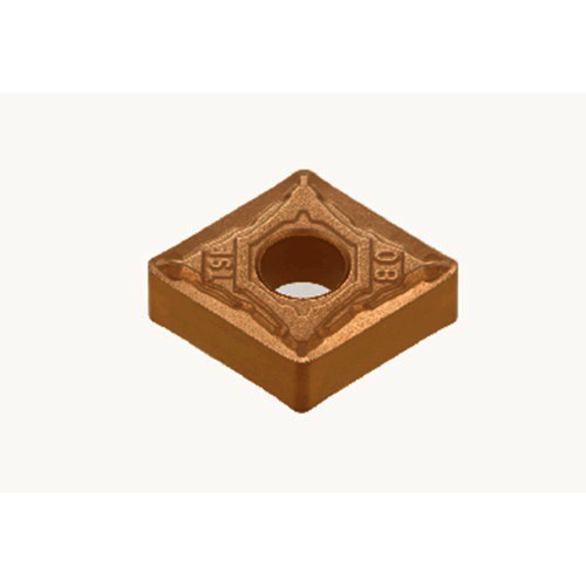

Image for TUNGAL 6854298
  • Insert Style: CNMG
  • Insert Size: 120408
  • Material: Carbide
  • Inscribed Circle: 12.70 mm
  • Corner Radius: 0.0314 in
  • Chipbreaker: Nega-TSF
  • Coating: TiAlN
  • Cutting Direction: Neutral
  • Cutting Edge Length: 0.508 in
  • Hole Diameter: 5.16 mm
  • Hole Diameter - Metric: 5.16 mm
  • Included Angle: 80 deg
  • Inscribed Circle Size - Fractional: 1/2 in
  • Insert Hand: Neutral
  • Insert Thickness: 0.187 in
  • ISO Number: CNMG120408-TSF
  • Manufacturer Grade: AH120
  • Maximum Depth of Cut: 0.059 in
  • Overall Length: 12.90 mm
  • Part Number: 6854298
  • Rake: Negative

Negative relief angle, M class, 80deg rhombic insert, for finishing

Standard/Approvals:AH120, CNMG120408-TSF

Application:

  • External turning

    • Tungaloy 6854298 CNMG | 120408 | TSF | AH120 | Carbide | Turning Insert
