Tungaloy

Tungaloy 6994032 CNMG, 120404, SS, Turning Insert

TUNGAL 6994032
$14.18 / Order multiples of 10 EA
Out of Stock

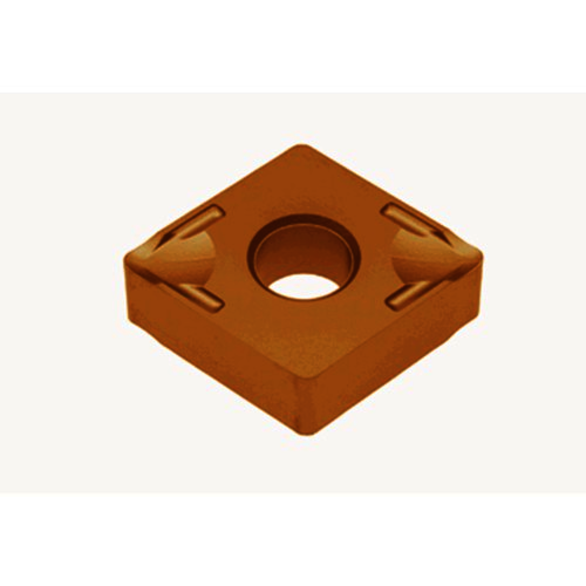

Image for TUNGAL 6994032
  • Insert Style: CNMG
  • Insert Size: 120404
  • Material: Carbide
  • Inscribed Circle: 12.70 mm
  • Corner Radius: 0.0157 in
  • Chipbreaker: Nega-SS
  • Coating: TiCN; TiN
  • Coating Process: CVD
  • Cutting Direction: Neutral
  • Cutting Edge Length: 0.508 in
  • Hole Diameter: 5.16 mm
  • Hole Diameter - Metric: 5.16 mm
  • Included Angle: 80 deg
  • Inscribed Circle Size - Fractional: 1/2 in
  • Insert Hand: Neutral
  • Insert Thickness: 0.187 in
  • ISO Number: CNMG120404-SS
  • Manufacturer Grade: T6130
  • Maximum Depth of Cut: 0.1181 in
  • Overall Length: 12.90 mm
  • Part Number: 6994032
  • Rake: Negative

Negative relief angle, M class, 80deg rhombic insert, for finishing of stainless steel etc.

Standard/Approvals:T6130, CNMG120404-SS

Application:

  • External turning

    • Tungaloy 6994032 CNMG | 120404 | SS | T6130 | Carbide | Turning Insert
