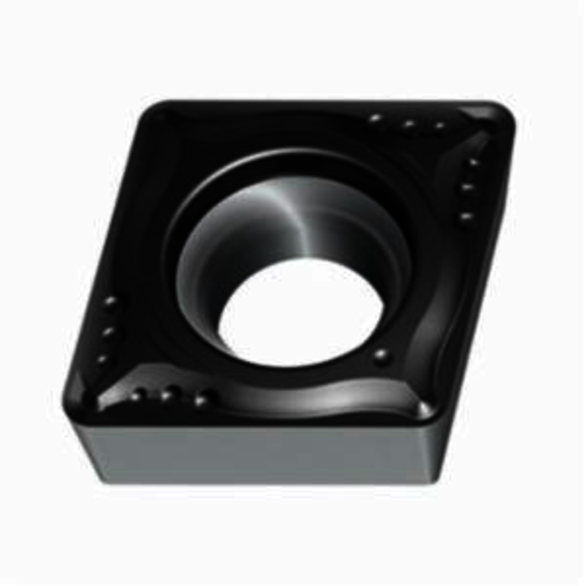

Walter Tools
VALENI 7021252 0.031 in Corner Radius, 0.254 in Cutting Edge L, 0.005–0.01 in Feed per Revolution, Turning Inserts
VALENI 7021252
$35.60
/ Order multiples of 10 EA
Out of Stock
- Insert Style: CPGT
- Insert Size: 2(1.5)2
- Material: Solid Carbide
- Inscribed Circle: 6.350 mm
- Thickness: 2.380 mm
- Corner Radius: 0.031 in
- Chipbreaker: MM4
- Coating: PVD
- Coating Process: PVD
- Cutting Edge Length: 0.254 in
- Depth of Cut: 0.02–0.079 in
- Hole Diameter - Metric: 2.800 mm
- Included Angle: 80 Degree
- Insert Hand: Neutral
- ISO Number: CPGT060208-MM4 WSM01
- Manufacturer Grade: WSM01
- Part Number: 7021252
- Rake: Positive
- Relief Angle: 11 Degree
- Shape: Rhombic
- Machining of long chipping materials
- Can be used universally in a wide range of applications
- Straight cutting edge for C, S and T basic shapes, for use as a chamfer insert in boring tools
- Circumference precision-ground
- Circumference precision-sintered
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Micro edge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
Standard/Approvals:WSM01, CPGT060208-MM4 WSM01
Walter USA 7021252 CPGT | 2(1.5)2 | MM4 | WSM01 | Solid Carbide | Turning Insert
