Walter Tools

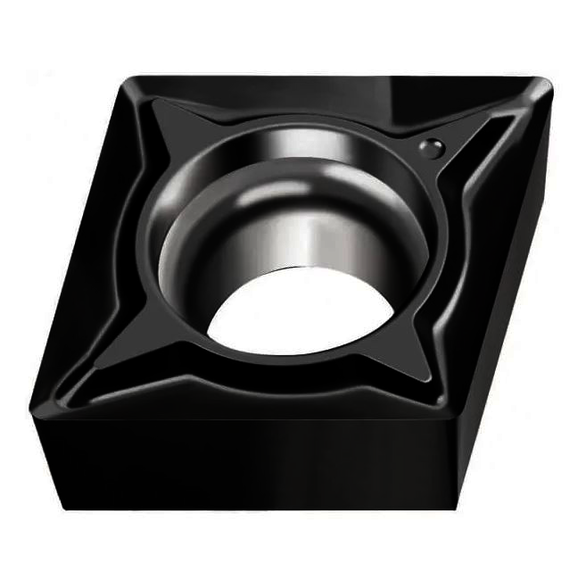

WALTER 6955645 0.016 in Corner Radius, 0.381 in Cutting Edge L, 0.003–0.01 in Feed per Revolution, Turning Inserts
WALTER 6955645
$27.80
/ Order multiples of 10 EA
Out of Stock
- Insert Style: CCGT
- Insert Size: 3(2.5)1
- Material: Solid Carbide
- Inscribed Circle: 9.525 mm
- Thickness: 3.970 mm
- Corner Radius: 0.016 in
- Chipbreaker: FN2
- Coating: TiAlN
- Coating Process: PVD
- Cutting Edge Length: 0.381 in
- Depth of Cut: 0.008–0.098 in
- Hole Diameter - Metric: 4.400 mm
- Included Angle: 80 Degree
- Insert Hand: Neutral
- ISO Number: CCGT09T304-FN2 WNN10
- Manufacturer Grade: WNN10
- Part Number: 6955645
- Rake: Positive
- Relief Angle: 7 Degree
- Shape: Rhombic
- Finishing insert with circumference fully ground
- Long, small diameter shafts with a tendency to vibrate
- Low cutting forces
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Micro edge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
Standard/Approvals:WNN10, CCGT09T304-FN2 WNN10
Walter USA 6955645 CCGT | 3(2.5)1 | FN2 | WNN10 | Solid Carbide | Turning Insert
