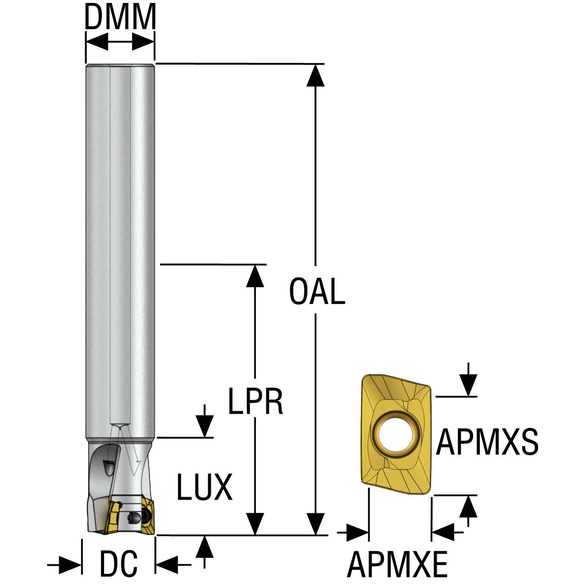

Seco 02688854 Turbo 12 Single Sided Insert Indexable Shoulder Mill, ANSI Code: R217.69-01.00-0-12-3AN, 25.4 mm Dia Cutting, Cylindrical Shank, Right Hand Cutting, 90 deg Lead Angle, 11 mm Max Depth of Cut
SECO 02688854
$644.40
/ EA
Out of Stock
- Cutting Diameter: 25.4 mm
- Cutting Diameter - Metric: 25.4 mm
- Shank Type: Cylindrical
- Shank Diameter: 25.4 mm
- Shank Diameter - Metric: 25.4 mm
- Overall Length/Projection: 170 mm
- Lead Angle: 90 deg
- Coolant Through: Yes
- Cutting Direction: Right Hand
- Finish/Coating: Coated
- Length of Cut: 0.625 in
- Material: Steel
- Maximum Depth of Cut: 11 mm
- Maximum Depth of Cut - Metric: 11 mm
- Maximum RPM: 20800 RPM
- Number of Inserts: 3
- Overall Length: 170 mm
- Overall Length - Metric: 170 mm
- Part Number: 45379
- Shank Length: 135 mm
- Shank Length - Metric: 135 mm
R217.69-01.00-0-12-3AN CUTTER
