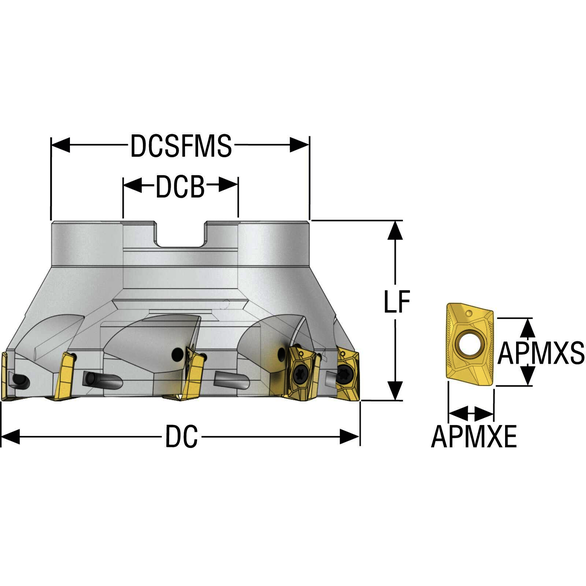

Seco 02694997 R220.69 Indexable Square-Shoulder Face Mill, 6 in Dia Cutting, 2.48 in OAL, 0.669 in Max Depth of Cut, 2 in Dia Arbor Hole, 90| deg Lead Angle
SECO 02694997
$2,316.00
/ EA
Out of Stock
- Cutting Diameter: 6 in
- Cutting Diameter - Metric: 152.4 mm
- Shank Type: Arbor
- Overall Length/Projection: 63 mm
- Lead Angle: 90 deg
- Arbor Hole Diameter: 2 mm
- Arbor Hole Diameter - Metric: 2 mm
- Coolant Through: No
- Cutting Direction: Right Hand
- Length of Cut: 0.625 in
- Maximum Depth of Cut: 0.669 in
- Maximum RPM: 5000 RPM
- Number of Inserts: 9
- Overall Length: 2.48 in
- Part Number: 55358
R220.69-06.00-18-9N TOOLHOLDER
