Widia

VSM490-15 D160 Z12 SHELL MILL JIS VSM490D160Z12S508XN15JIS

WIDIA 6342810
$1,935.35 / EA
Out of Stock

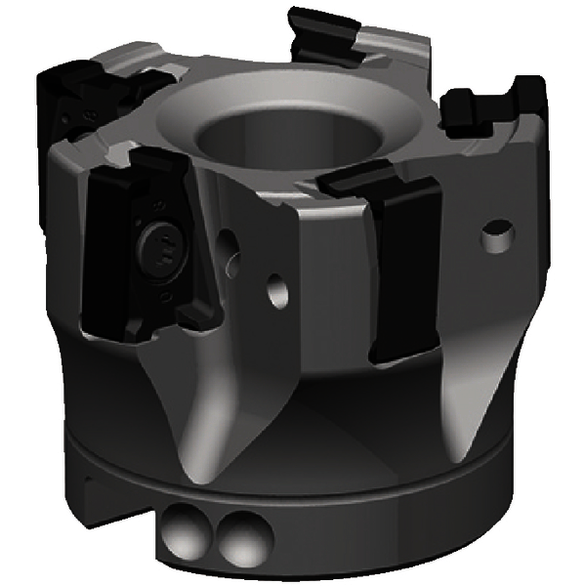

Image for WIDIA 6342810
  • Shank Diameter: 2 in
  • Shank Diameter - Decimal: 2 in
  • Shank Diameter - Metric: 50.8 mm
  • Lead Angle: 90 deg
  • Axial Rake Angle: -8 deg
  • Body Diameter: 6.17 in
  • Body Diameter - Decimal: 6.17 in
  • Body Diameter - Metric: 156.71 mm
  • Functional Length: 2.48 in
  • Hand of Tool: R - Right
  • Hub Diameter: 3.937 in
  • Material: Steel
  • Maximum Depth of Cut: 0.591 in
  • Number of Flutes: 12
  • Number of Inserts: 12
  • Overall Length: 2.48 in
  • Radial Rake Angle: -13.6 deg
  • True 90° roughing tool with imbedded finishing capability in one.
  • Best in class wall finish at axial stepping down jobs.
  • Lower cutting forces and real soft cutting action.
  • Perfect fit for taper 40 spindles and driven units.
  • Coarse, medium and fine pitch cutter density available.
  • Cutters following Japanese Industry Standard JIS are available.
