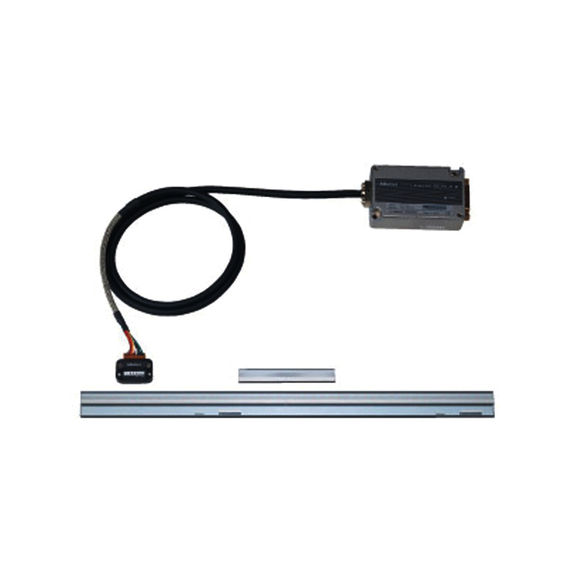

Mitutoyo 579-632 579 ST422 Compact Linear Scale, 25 mm, LED

• The ultra-compact ST422 Linear Scale has an effective measurement length of 3000mm, making it ideal for use on large machines
• It’s ultra-compact design allows the detector to be used in applications where space-saving is important
• The maximum response speed is 5000mm/s. (When resolution is 1μm and the minimum edge interval is 125ns)
• Ultra-compact detector control unit allows use in applications where space-saving design is important
• The maximum effective measurement length of 3000mm enables use on large machines
• Simultaneous output of 2-phase square wave signals (maximum resolution: 0.2μm) and 2-phase sinusoidal wave signals (main signal: 40μm) is available
• LED display function for indicating signal errors
• Equipped with scale reference point output

Application:

Mitutoyo 579-632 | 25.00 mm Measurement | +/-1 μm Accuracy | 1.0 μm Resolution | Both | Electronic Linear Scale
