Mitutoyo 148-507 Imperial Micrometer Head With Clamp Nut, 0 to 1/2 in, Graduations: 0.001 in

The Mitutoyo smaller-sized standard micrometer head with zero-adjustable thimble is shorter in length and range with a smaller diameter for easier placement on machines and fixtures.

• Set screw allows for zero setting at any position
• Available in Metric and Inch models

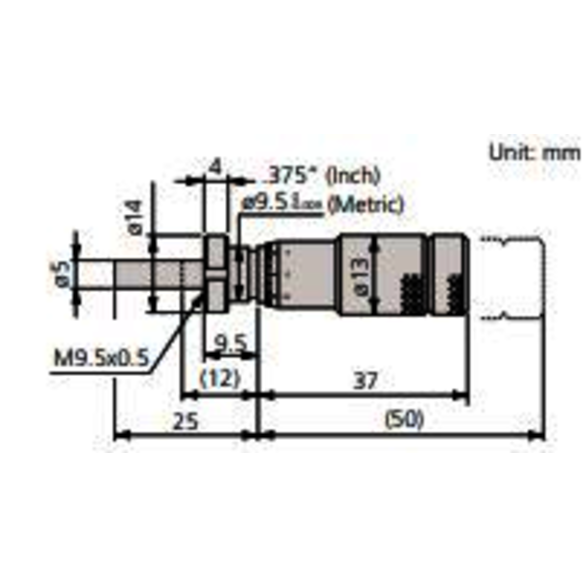

• Smaller size mic head has a 13mm thimble diameter
• Spindle range is 13mm / .5”
• Mounting stem diameter is 9.5mm / .375”
• Spindle diameter is 5mm / .197”
• Mic head total lengths (at stroke end) are 75mm / 2.95” and 83.6mm / 3.29”
• Reverse reading is available on some models
• Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel. Available in spherical or flat types
• Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements

Mitutoyo 148-507 0 in to 0.5000 in Measurement | Accurate upto - ±0.0001 in | Mechanical Micrometer Head
