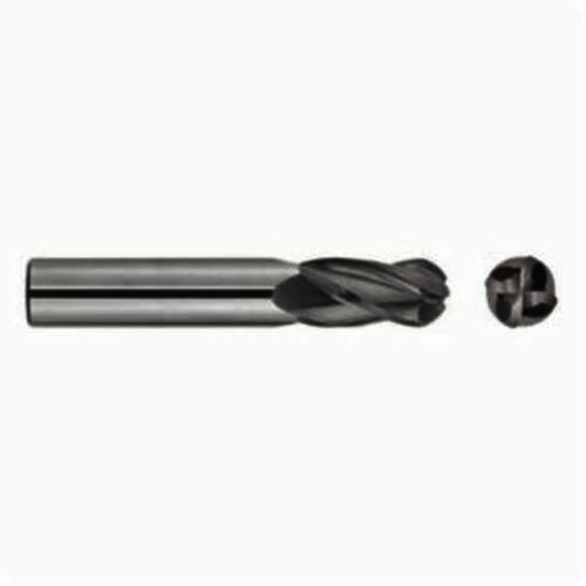

Niagara Cutter 17001824 CB430 Ball End Center Cutting Medium Length Single End End Mill, 5/64 in Dia Cutter, 1/4 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiAlN Coated
NIACUT 17001824
$17.51
/ EA
Out of Stock
- Mill Diameter: 5/64 in
- Mill Diameter - Fractional: 5/64 in
- Number of Flutes: 4
- Length of Cut: 1/4 in
- Material: Solid Carbide
- Overall Length: 1-1/2 in
- Shank Diameter: 1/8 in
- Shank Diameter - Fractional: 1/8 in
- Finish/Coating: TiAlN-Coated
- Single or Double End: Single End
- Helix Angle: 30 deg
- Cutter Diameter: 5/64 in
- Cutter Diameter - Fractional: 5/64 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Length of Cut - Fractional: 1/4 in
- Overall Length - Fractional: 1-1/2 in
- Part Number: N56020
- Series/List: CB430
- Shank Type: Cylindrical
- Variable Index: No
- Flute Direction: Right Hand
- Variable Helix: No
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
- 90 deg cutting edge
- 30 deg axial rake
- 10 deg radial rake
- 10 deg neck
- F - Step tool shape
For general machining of most materials
Niagara Cutter End Mill | Ball End Center Cutting Medium Length Single End | Series: CB430 | 5/64 in Cutter Dia | 1-1/2 in Overall Length | 1/8 in | 1/4 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/8 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CB430-0.078-F3-B.0-Z4 | ISO Code: CB430.078F3B.0Z4 | Solid Carbide | TiAlN Coated
