Dataflute CNC
DATCNC 39680-00-D in Milling Dia, in LOC, in OAL, Flutes, , , Roughing & Finishing End Mills
DATCNC 39680-00-D
$0.00
/ EA
Out of Stock
- Mill Diameter: 0.75 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Number of Flutes: 2
- Material: Carbide
- Finish/Coating: Uncoated
- Length of Cut: 1 in
- Shank Diameter: 0.75 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Overall Length: 6 in
- Flute Type: Spiral
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Overall Length - Decimal: 6 in
- Overall Length - Metric: 152.4 mm
- Part Number: 39680-00-D
- Flute Direction: Right Hand

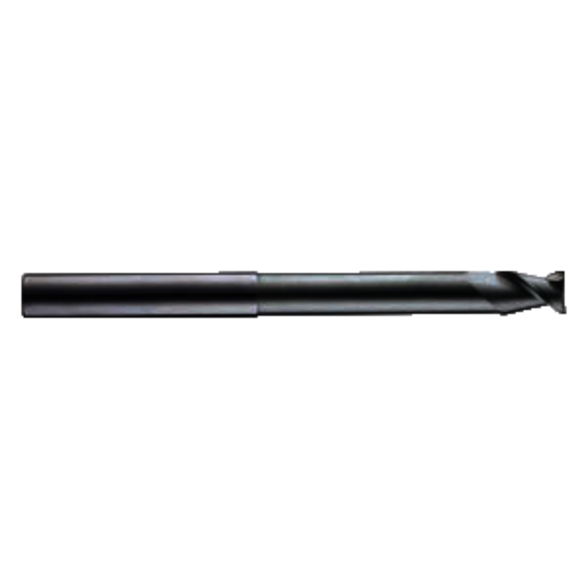

The HSM is a 2 flute rougher/finisher that uses the geometries of the ARF series and couples them with an extended reach design. The stub flute length, in conjunction with a wide range of reach lengths, makes the HSM series a great choice for roughing in aluminum and other non-ferrous materials in hard to reach depths of cuts.
- High Performance Carbide
- Periphery and Pocketing Operations
- Reduced Neck for Reach and Stability
- High Helix for Chip Removal
Standard/Approvals:HSMM20750
Dataflute CNC 39680-00-D | 2.5 | Roughing & Finishing End Mill
