Dataflute CNC

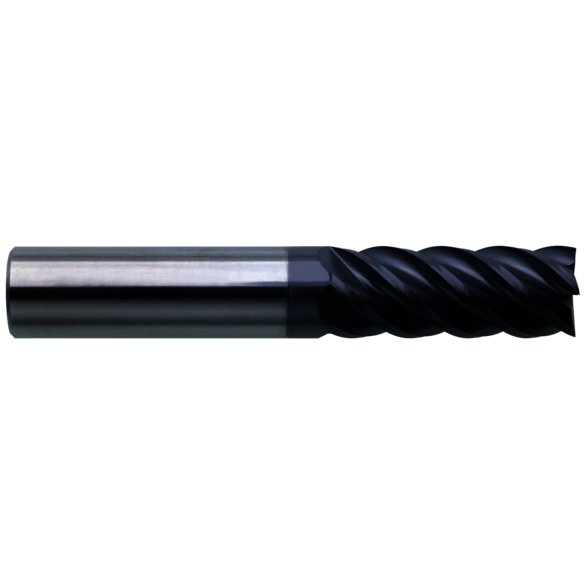

DATCNC 39792-00-D in Milling Dia, in LOC, in OAL, Flutes, , , Roughing & Finishing End Mills
DATCNC 39792-00-D
$62.72
/ EA
Out of Stock
- Mill Diameter: 0.5 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Mill Diameter - Metric: 12.7 mm
- Number of Flutes: 5
- Material: Carbide
- Finish/Coating: Uncoated
- Length of Cut: 1.25 in
- Shank Diameter: 0.5 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 3 in
- Flute Direction: Right Hand
- Flute Type: Spiral
- Length of Cut - Decimal: 1.25 in
- Length of Cut - Fractional: 1-1/4 in
- Length of Cut - Metric: 31.75 mm
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Part Number: 39792-00-D
Our MH series is the tool of choice for finishing and light profile roughing in ferrous materials. The odd number of flutes disrupts unwanted harmonics. Our medium helix provides an optimum shear angle to aid chip evacuation. We have a full offering of stub, standard, medium, long and extra long lengths of cut.
- High Performance Carbide
- Eccentric Primary
- 45 Degree Helix
- Available in Stub, Standard,
- Medium, Long and Extra Long
Standard/Approvals:MH50500
Dataflute CNC 39792-00-D | 5 | Roughing & Finishing End Mill
