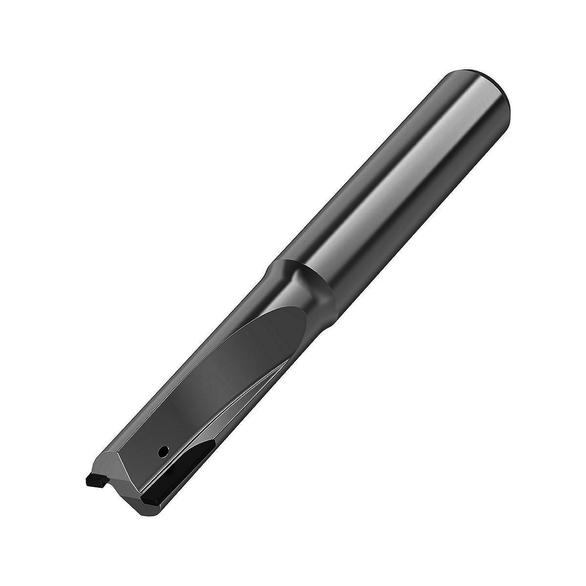

KENNAM 6752728 0.0100 in Corner Rad, 0.2500 in Mill Dia, 0.2500 in LOC, 2.2500 in OAL, 2 Flutes, Diamond, Uncoated, Corner Radius & Corner Chamfer End Mill
KENNAM 6752728
$334.01
/ EA
Out of Stock
- Mill Diameter: 1/4 in
- Mill Diameter - Decimal: 0.25 in
- Mill Diameter - Fractional: 1/4 in
- Mill Diameter - Metric: 6.35 mm
- Corner Radius: 0.01 in
- Number of Flutes: 2
- Material: Carbide
- Finish/Coating: Diamond
- Length of Cut: 1/4 in
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2-1/4 in
- Centercutting: No Center Cutting
- Center Cutting: No Center Cutting
- Chipbreaker: No
- Corner Radius - Decimal: 0.01 in
- End Type: Corner Radius
- Flute Direction: Right Hand
- Flute Type: Helical
- Hand of Tool: R - Right
- Length of Cut - Decimal: 0.25 in
- Length of Cut - Fractional: 1/4 in
- Length of Cut - Metric: 6.35 mm
- Overall Length - Decimal: 2.25 in
- Overall Length - Fractional: 2-1/4 in
- Overall Length - Metric: 57.15 mm
- Shank Type: Straight Shank
- Single or Double End: Single End
- Variable Helix: No
- Variable Index: No
Standard/Approvals: ALCB2RA0250N025HAR010I
Application: Face Milling, Side Milling/Shoulder Milling: Roughing, Side Milling/Shoulder Milling: Square End, Trochoidal Milling Slotting: Square End, Slotting: Square End
Kennametal 6752728 0.25 in Dia | 2 Flute | Solid Carbide | 0.0100 in | Uncoated | Corner Radius & Corner Chamfer End Mill
