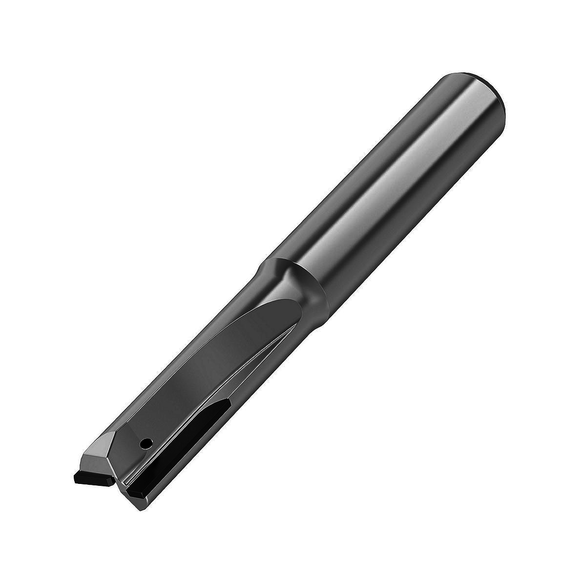

KENNAM 6752756 0.0100 in Corner Rad, 0.3750 in Mill Dia, 0.6250 in LOC, 3.0000 in OAL, 2 Flutes, Diamond, Uncoated, Corner Radius & Corner Chamfer End Mill
KENNAM 6752756
$457.45
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Corner Radius: 0.01 in
- Number of Flutes: 2
- Material: Carbide
- Finish/Coating: Diamond
- Length of Cut: 5/8 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 3 in
- Centercutting: Center Cutting
- Center Cutting: Center Cutting
- Chipbreaker: No
- Corner Radius - Decimal: 0.01 in
- End Type: Corner Radius
- Flute Direction: Right Hand
- Hand of Tool: R - Right
- Length of Cut - Decimal: 0.625 in
- Length of Cut - Fractional: 5/8 in
- Length of Cut - Metric: 15.875 mm
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Shank Type: Straight Shank
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Straight
- Variable Index: No
Standard/Approvals: ALCC2RA0375N063HAR010I
Application: Face MillingSide Milling/Shoulder Milling: RoughingSide Milling/Shoulder Milling: Square EndTrochoidal MillingSlotting: Square EndSlotting: Square EndHelical MillingPlunge MillingPocketingRamping: BlankDrilling100665610
Kennametal 6752756 0.375 in Dia | 2 Flute | Solid Carbide | 0.0100 in | Uncoated | Corner Radius & Corner Chamfer End Mill
