Walter Tools

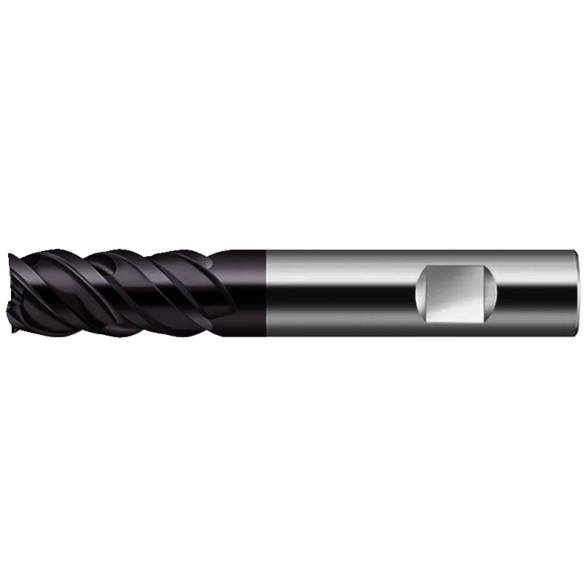

PROTYP 6579290 MC326.7.94W4D-WK40TF 4 F End Mill
PROTYP 6579290
$121.89
/ EA
Out of Stock
- Mill Diameter: 5/16 in
- Mill Diameter - Decimal: 0.3125 in
- Mill Diameter - Fractional: 5/16 in
- Mill Diameter - Metric: 7.9375 mm
- Number of Flutes: 4
- Material: Carbide
- Finish/Coating: TiAlN
- Length of Cut: 13/16 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 3 in
- Centercutting: Center Cutting
- Helix Angle: 50 deg
- Center Cutting: Center Cutting
- Chamfer Angle: 0 deg
- Cutting Direction: Right Hand
- Diameter: 5/16 in
- End Type: Corner Chamfer
- Extended Reach: No
- Flute Type: Helical
- Length of Cut - Decimal: 0.8125 in
- Length of Cut - Fractional: 13/16 in
- Length of Cut - Metric: 20.6375 mm
- Length Type: Long Length
- Mill Diameter Tolerance: h10
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Overhang Length: 1.437 in
- Series: Supreme
- Series/List: MC326
- Shank Type: Straight-Cylindrical
- Diameter - Decimal: 0.3125 in
- Diameter - Fractional: 5/16 in
- Diameter - Metric: 7.937 mm
- Flute Direction: Right Hand
Standard:
DIN1835-A/DIN6535-HA
DIN1835-A/DIN6535-HA
