Walter Tools

PROTYP 6579314 MC326.19.1W4DCJ-WK40TF 4 F End Mill

PROTYP 6579314
$444.79 / EA
Out of Stock

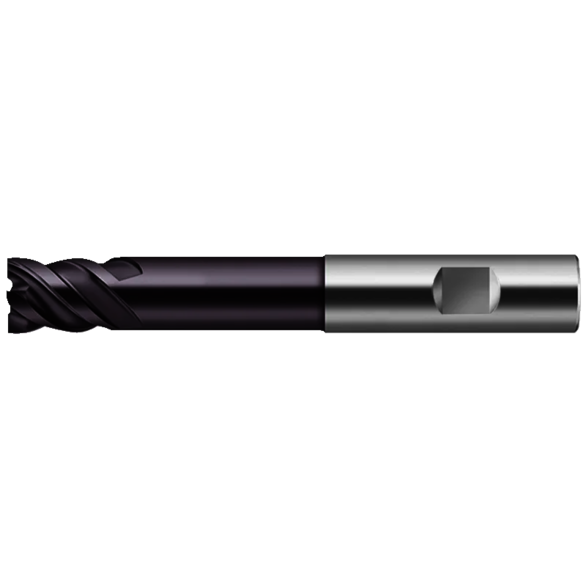

Image for PROTYP 6579314
  • Mill Diameter: 3/4 in
  • Mill Diameter - Decimal: 0.75 in
  • Mill Diameter - Fractional: 3/4 in
  • Mill Diameter - Metric: 19.05 mm
  • Number of Flutes: 4
  • Material: Carbide
  • Finish/Coating: TiAlN
  • Length of Cut: 3/4 in
  • Shank Diameter: 3/4 in
  • Shank Diameter - Decimal: 0.75 in
  • Shank Diameter - Fractional: 3/4 in
  • Shank Diameter - Metric: 19.05 mm
  • Overall Length: 4-1/4 in
  • Centercutting: Center Cutting
  • Helix Angle: 50 deg
  • Chamfer Angle: 0 deg
  • Diameter: 3/4 in
  • End Type: Corner Chamfer
  • Length of Cut - Decimal: 0.75 in
  • Length of Cut - Fractional: 3/4 in
  • Length of Cut - Metric: 19.05 mm
  • Overall Length - Decimal: 4.25 in
  • Overall Length - Fractional: 4-1/4 in
  • Overall Length - Metric: 107.95 mm
  • Overhang Length: 2.2185 in
  • Series: Supreme
  • Type: Center Cutting
  • Diameter - Metric: 19.05 mm
  • Diameter - Decimal: 0.75 in
  • Diameter - Fractional: 3/4 in
Standard:

DIN1835-A/DIN6535-HA
