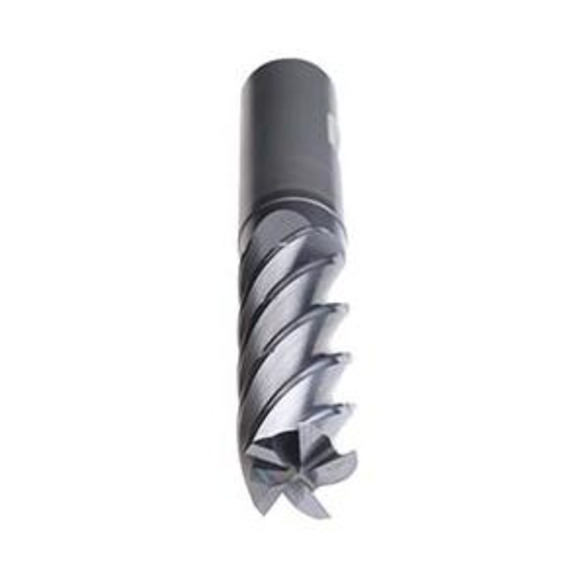

Emuge 2533L.008 Square End Mills 8mm Milling Dia, 3XD LOC, 68mm OAL, 5 Flutes, Carbide
EMUGE 2533L.008
$284.50
/ EA
Out of Stock
- Mill Diameter: 8 mm
- Mill Diameter - Decimal: 0.315 in
- Mill Diameter - Metric: 8 mm
- Number of Flutes: 4
- Length of Cut: 0.9449 in
- Material: Carbide
- Shank Diameter: 8 mm
- Shank Diameter - Metric: 8 mm
- Single or Double End: Single End
- Overall Length: 68 mm
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 38 - 42 deg
- Coolant Through: No
- Cutter Diameter: 8 mm
- Length of Cut - Metric: 24 mm
- Overall Length - Metric: 68 mm
- Series: Trochoidal Jet-Cut 2533L
- Shank Type: Weldon Flat
- Flute Type: Spiral
- Cutter Diameter - Metric: 8 mm
- The Trochoidal Jet-Cut series was especially developed for use with advanced milling strategies in machining steels and cast materials
- Vibration dampening with variable helix/flute spacing
- Heat and wear resistant mono-layer AlCr - PVD applied coating
- Roughing/finishing flute profile for optimum performance
- Staggered chip breaker design for even wear in depths up to 2XD
- High metal removal rate combined with the best possible surface quality
Standards/Approvals: DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Square End Mill | Series: Trochoidal Jet-Cut 2533L | 8 mm Cutter Dia | 68 mm Overall Length | 3XD Maximum Depth of Cut | 5 Flutes | Spiral Flute | 8 mm Shank Dia | Right Hand Cutting | 38/42 deg Helix Angle | Weld-On Flat Shank | Carbide | AlCr Coated
