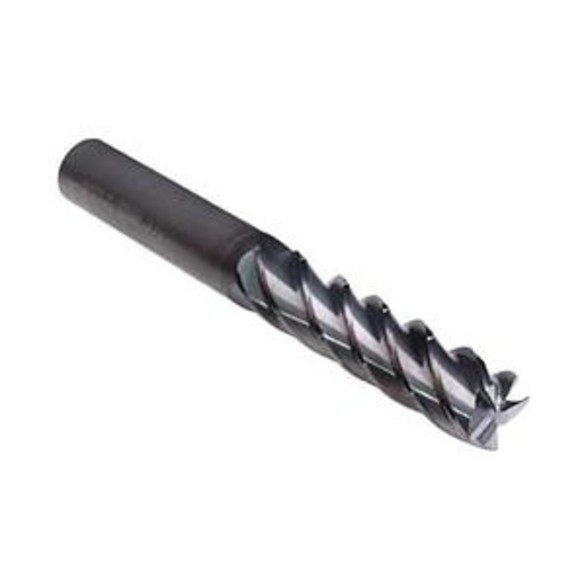

Emuge 2575L.03125 Square End Mills 5/16in Milling Dia, 4XD LOC, 3in OAL, 5 Flutes, Carbide
EMUGE 2575L.03125
$267.29
/ EA
Out of Stock
- Mill Diameter: 5/16 in
- Mill Diameter - Fractional: 5/16 in
- Number of Flutes: 5
- Length of Cut: 1.25 in
- Material: Carbide
- Shank Diameter: 5/16 in
- Shank Diameter - Fractional: 5/16 in
- Single or Double End: Single End
- Overall Length: 3 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 38 - 42 deg
- Coolant Through: No
- Cutter Diameter: 5/16 in
- Cutter Diameter - Fractional: 5/16 in
- Length of Cut - Fractional: 1-1/4 in
- Overall Length - Decimal: 3 in
- Series: Trochoidal Jet-Cut 2575L
- Flute Type: Spiral
- Shank Type: Weldon Flat
- Trochoidal Jet-Cut series was especially developed for use with advanced milling strategies in machining steels and cast materials
- Vibration dampening with variable helix/flute spacing
- Heat and wear resistant mono-layer AlCr - PVD applied coating
- Roughing/finishing flute profile for optimum performance
- Staggered chip breaker design for even wear in depths up to 4XD
- High metal removal rate combined with the best possible surface quality
Standards/Approvals: DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For roughing and finishing applications
Emuge Square End Mill | Series: Trochoidal Jet-Cut 2575L | 5/16 in Cutter Dia | 3 in Overall Length | 4XD Maximum Depth of Cut | 5 Flutes | Spiral Flute | 5/16 in Shank Dia | Right Hand Cutting | 38/42 deg Helix Angle | Weld-On Flat Shank | Carbide | AlCr Coated
