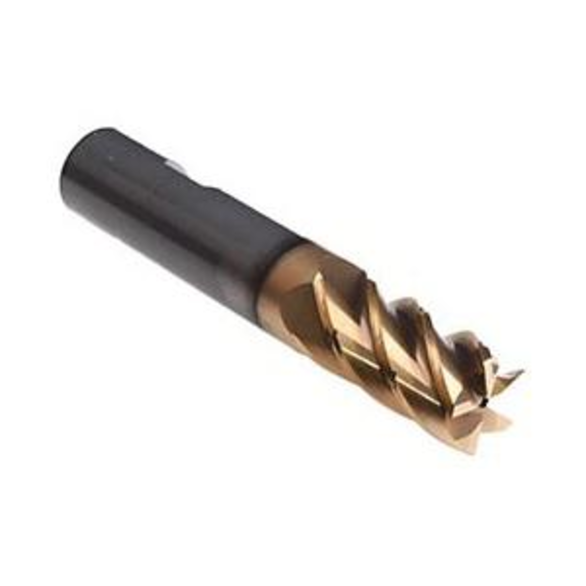

Emuge 2577Tz.0500 Square End Mills 1/2in Milling Dia, 2XD LOC, 3-1/4in OAL, 5 Flutes, Carbide
EMUGE 2577TZ.0500
$200.71
/ EA
Out of Stock
- Mill Diameter: 0.5 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Number of Flutes: 5
- Length of Cut: 1 in
- Material: Carbide
- Finish/Coating: TiN/TiAlN
- Shank Diameter: 0.5 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Single or Double End: Single End
- Overall Length: 3.25 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 38 - 42 deg
- Coolant Through: Yes
- Cutter Diameter: 1/2 in
- Length of Cut - Metric: 25.4 mm
- Overall Length - Decimal: 3.25 in
- Overall Length - Fractional: 3-1/4 in
- Series: Trochoidal TiNox-Cut 2577TZ
- Shank Type: Weldon Flat
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/2 in
- The Trochoidal TiNox-Cut series was especially developed for use with advanced milling strategies in machining titanium alloys, nickel based alloys and stainless steel
- Vibration dampening with variable helix/flute spacing
- Heat and wear resistant multi-layer TiN/TiAlN - PVD coating
- Roughing/finishing flute profile for optimum performance
- Staggered chip breaker design for even wear in depths up to 2XD
- Coolant fed (axial) design for efficient chip evacuation
- Machining of difficult to cut materials
Standards/Approvals: DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For roughing and finishing applications
Emuge Square End Mill | Series: Trochoidal TiNox-Cut 2577TZ | 1/2 in Cutter Dia | 3-1/4 in Overall Length | 2XD Maximum Depth of Cut | 5 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 38/42 deg Helix Angle | Weld-On Flat Shank | Carbide | TiN/TiAlN Coated
