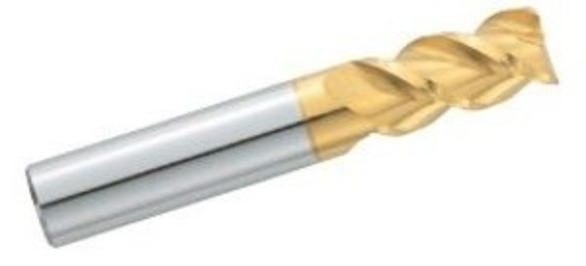

GARR 86183 253MT Square End Mill, 3/16 in Dia Cutter, 1 in Length of Cut, 3 Flutes, 3/16 in Dia Shank, 3 in OAL, TiN Coated
GARR 86183
$21.93
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.1875 in
- Mill Diameter - Decimal: 0.1875 in
- Number of Flutes: 3
- Length of Cut: 1 in
- Material: Carbide
- Finish/Coating: TiN
- Shank Diameter: 0.1875 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Single or Double End: Double End
- Overall Length: 3 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 50 deg
- Coolant Through: No
- Cutting Diameter: 3/16 in
- Cutting Diameter - Fractional: 3/16 in
- Diameter: 3/16 in
- Diameter - Fractional: 3/16 in
- End Type: Square End
- Flat: No
- Overall Length - Decimal: 3 in
- Series: 15
- Tool Type: EM
- Weight: 0.05 kg
- Diameter - Decimal: 0.1875 in
- Diameter - Metric: 4.762 mm
- Finish: TiN
- Rigid work holding, machine stability and part integrity are critical
- Coating increases lubricity
- 10% faster than uncoated
- Sharp corners
- Slots aluminum at an axial depth of 25% of diameter
