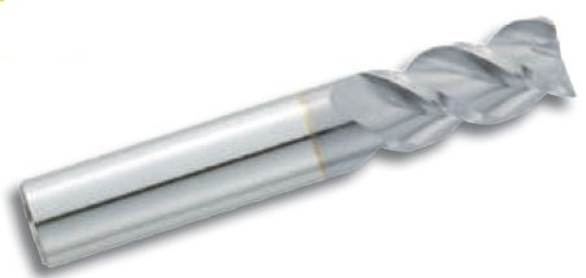

GARR 86364 253MC Center Cutting Square End Mill, 7/16 in Dia Cutter, 9/16 in Length of Cut, 3 Flutes, 7/16 in Dia Shank, 2-1/2 in OAL, TiCN Coated
GARR 86364
$55.12
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.4375 in
- Mill Diameter - Decimal: 0.4375 in
- Number of Flutes: 3
- Length of Cut: 0.5625 in
- Material: Carbide
- Finish/Coating: TiCN
- Shank Diameter: 0.4375 in
- Shank Diameter - Decimal: 0.4375 in
- Shank Diameter - Fractional: 7/16 in
- Single or Double End: Single End
- Overall Length: 2.5 in
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Helix Angle: 50 deg
- Coolant Through: No
- Cutting Diameter: 7/16 in
- Cutting Diameter - Fractional: 7/16 in
- Diameter: 7/16 in
- End Type: Square End
- Finish: TiCN
- Flat: N
- Length of Cut - Fractional: 9/16 in
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Series: 16
- Tool Type: EM
- Type: Center Cutting
- Weight: 0.2 kg
- Diameter - Metric: 11.11 mm
- Diameter - Fractional: 7/16 in
- Diameter - Decimal: 0.4375 in
- High performance milling in aluminum and 303 stainless steel
- Rigid work holding, machine stability and part integrity are critical
- Improved abrasion resistance and lubricity
- Up to 25% faster than uncoated
- Slots aluminum and stainless steel at an axial depth of 25% of diameter
- Sharp corners
