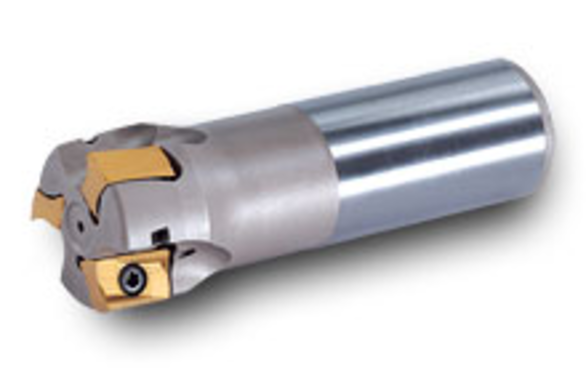

INGCUT 3031340 1 Dia 6 OAL Indexable End Mill
INGCUT 3031340
$496.00
/ EA
Out of Stock
- Mill Diameter: 1.000 in
- Number of Flutes: 2
- Length of Cut: 0.430 in
- Shank Diameter: 1.0000 in
- Shank Diameter - Decimal: 1 in
- Shank Diameter - Metric: 25.4 mm
- Overall Length: 6.00 in
- Angle: 90 deg
- Coolant Through: Yes
- Cutting Diameter: 1 in
- Cutting Diameter - Decimal: 1 in
- Cutting Diameter - Metric: 25.4 mm
- Cutting Edge Length: 0.43 in
- Extension Length: 3.75 in
- Lead Angle: 0 deg
- Overall Length - Decimal: 6 in
- Projection Length: 3.55 in
- Series: 1TJ1Q
- Ø1.000-1.500" (Weldon)
- .43" Depth of cut
- 12 mm Insert with 4 indexes
- 32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015", .031", .062" R
Application:
Ingersoll Cutting Tools 3031340 Mill Diameter 1 in | Square End Mill
