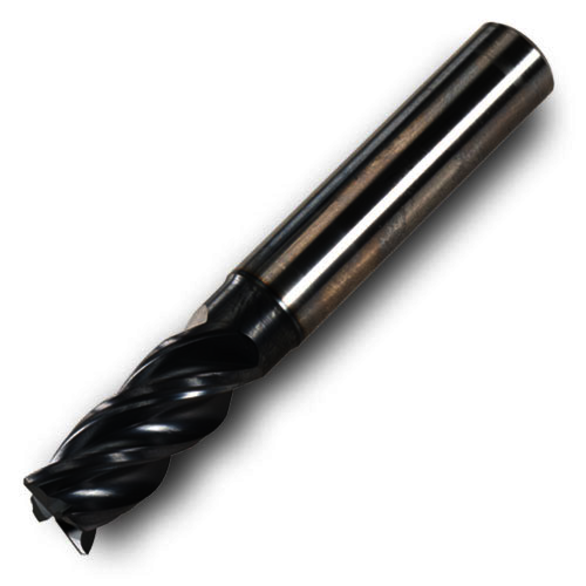

INGCUT 3032225 IN2005 Solid Carbide 0.5 Dia End Mill
INGCUT 3032225
$180.50
/ EA
Out of Stock
- Centercutting: Center Cutting
- Mill Diameter: 0.5 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Mill Diameter - Metric: 12.7 mm
- Number of Flutes: 4
- Length of Cut: 1 in
- Material: Carbide
- Finish/Coating: TiAlN
- Shank Diameter: 0.5 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 3.5 in
- Flute Direction: Right Hand
- Helix Angle: 38 deg
- Corner Radius: Sharp
- Cutter Pitch: Unequal
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Diameter - Fractional: 1/2 in
- End Type: Square
- Extended Reach: No
- Extension Length: 1.5 in
- Grade: IN2005
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Overall Length - Decimal: 3.5 in
- Overall Length - Fractional: 3-1/2 in
- Overall Length - Metric: 88.9 mm
- Pitch: Variable
- Projection Length: 1.5 in
- Series: 47J_RQ
- Shank Type: Cylindrical
- Diameter - Metric: 12.7 mm
- Ø.375-.750" (Cylindrical)
- 4 or 5 Flute for Roughing & Finishing Variable pitch with corner radius and sharp corners
- High metal removal rates, chatter-free
- For alloyed and stainless steel, titanium, and exotic materials
- Full slot milling up to 2xD
- Grade: IN2005
Applications:
Ingersoll Cutting Tools 3032225 0.500 Dia | 38 Degree | Solid Carbide | Roughing & Finishing End Mill
